942141026 - Unmanaged 5-port Switch
Std Part No: SPIDER-PL-20-04T1S29999TY9HHHH

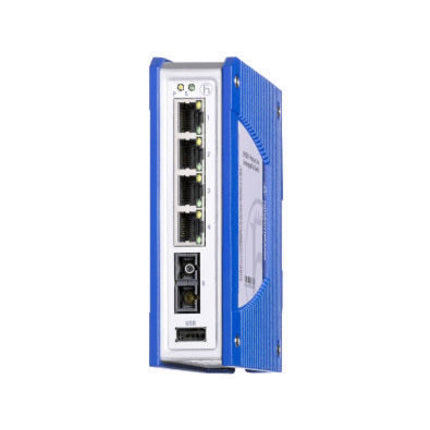

Hirschmann SPL20-4TX/1FX-SM-EEC is a 5-port unmanaged switch with 4 x 10/100BASE-TX RJ45 ports and 1 x 100BASE-FX Single-mode fiber SC port
The SPIDER PL switches feature configurable switch functionality typically only found in managed switches. The switches are easily configured using the SPIDER’s USB port and free stand-alone software tool.
PRODUCT FEATURES
- Advanced Unmanaged Switch features – Port Security, VLAN, QOS, Port Control
- Configuration via USB Interface
- With 4 x 10/100BASE-TX RJ45 ports and 1 x 100BASE-FX Single-mode fiber SC port
- Metal IP40 housings
- Extended Operating Temperature range -40 °C to +70 °C
- Extensive Industrial Certifications - Y9 variants have CE, FCC, EN 61131, EN 60950, cUL61010 approvals
ORDERING INFORMATION
| Essential Part Number |
Part Number |
Article Number |
Description |
| SPL20-4TX/1FX-SM-EEC |
SPIDER-PL-20-04T1S29999TY9HHHH |
942 141-026 |
Advanced 5port Unmanaged switch with4 x 10/100BASE-TX RJ45 ports and 1 x 100BASE-FX Single-mode fiber SC port, Extended Temp |
DOCUMENTS
SPL20-4TX/1FX-SM-EEC DATASHEET
