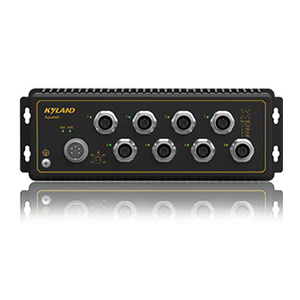

302243001 - Unmanaged 8-port FE EN50155 Switch with 8 TX M12 ports
Kyland Aquam8-8T-LV-LV is a 5 port Unmanaged Ethernet EN50155 Switch with 8 x 10/100Base-TX M12 ports,18-30VAC/12-48VDC(18-30VAC/9-60VDC) dual redundant power inputs,IP65, -40°C to +75°C operating temperature
PRODUCT FEATURES
• Supports up to 8 x 10/100Base-TX ports with M12 D-code female connectors
• IP65 or IP67 protection class
• DIN Rail or Panel mounting
• Complies with EN50155, EN50121 and EN45545 industry standards
• Extended operating temperature range -40°C to +75°C
• Available with 24VAC/DC or 110VDC power inputs
• M12 A-coded female power input connector
ORDERING INFORMATION
| Part Number |
Article Number |
Description |
| Aquam8-8T-LV-LV |
302 243-001 |
8 x 10/100Base-TX M12 ports,18-30VAC/12-48VDC(18-30VAC/9-60VDC) dual redundant power inputs,IP65, -40°C to +75°C operating temperature |
DOCUMENTS
Aquam8-8T-LV-LV DATASHEET
