Opal5-E-1S4T-SC40-LV-LV
Opal5-E-1S4T-SC40-LV-LV

Kyland

Opal5-E-1S4T-SC40-LV-LV

Request a quote

302210012 - Unmanaged 5-port FE Switch with 4 TX ports + 1FX Single-mode fiber port

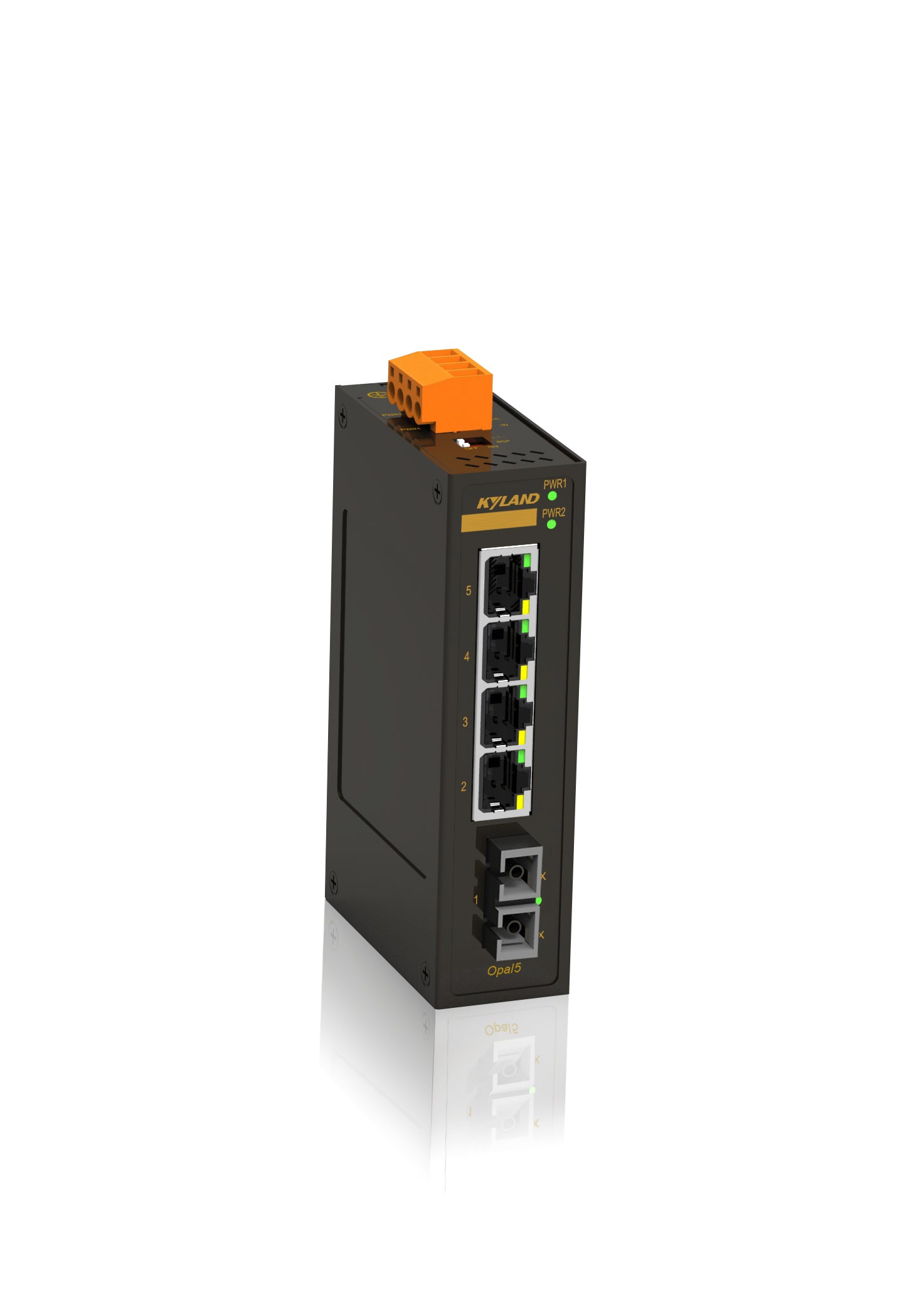

Kyland Opal5-E-1S4T-SC40-LV-LV is a 5-port Unmanaged switch with 4 x 10/100Base-TX ports and 1 x 100Base-FX Single mode fiber port, SC connector, 1310nm,40km. 9-60VDC/9-40VAC dual redundant power inputs, -10 to 60°C operating temperature range

PRODUCT FEATURES

• Simple plug and play devices
• Compact DIN-Rail Metal housing
• Standard operating temperature range -10 ºC to +60 ºC (- E variants)
• Available with Multi-mode (M) or Single-mode (S) fiber port. Multi-mode up to 5km and Single-mode up to 80km
• Available with open SFP port slot. (SFPs to be ordered separately)
• Available with extended operating temperature range -40 ºC to +70 ºC (non E variants)
• Dual redundant power inputs: 12-48VDC/18-30VAC
• Ideal for use with 24VAC BMS systems

ORDERING INFORMATION

Part Number Article Number Description
Opal5-E-1S4T-SC40-LV-LV 302 210-012 4 x 10/100BASE TX RJ45 + 1 x 100BASE FX MM fiber SC 5km. 24VAC/DC



DOCUMENTS

Opal5-E-1S4T-SC40-LV-LV DATASHEET
