142M1D11020
142M1D11020

MetzConnect

142M1D11020

Request a quote

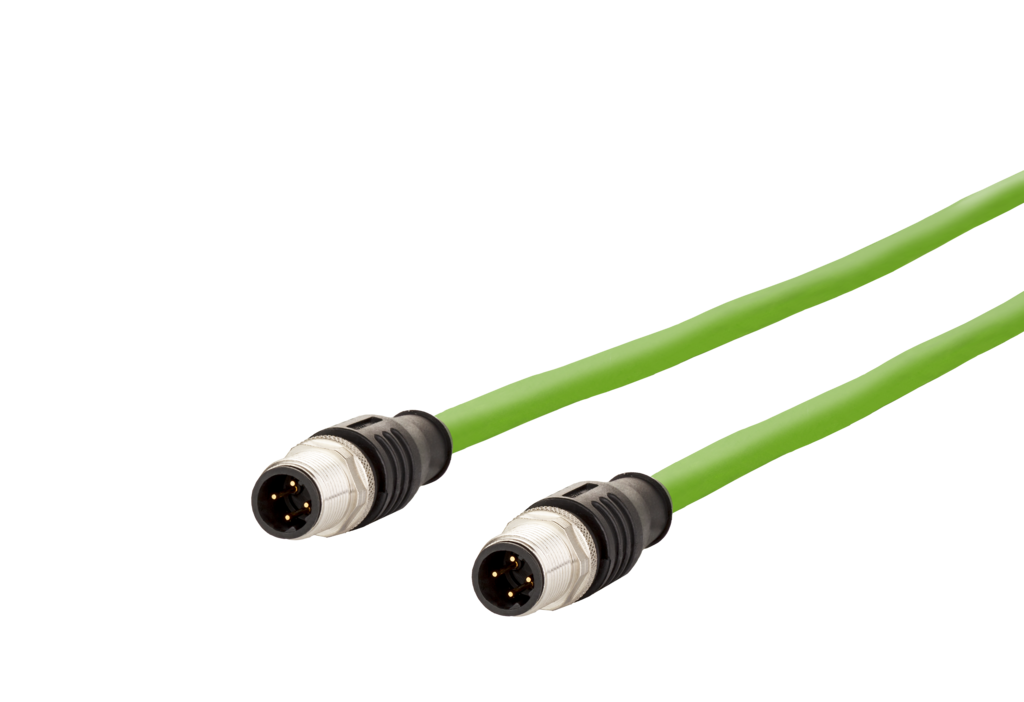

4250184139454 - Connection line M12 plug straight - M12 plug straight 4-pole, D-coded 2.0 m

Metz Connect 142M1D11020 is a Connection line M12 plug straight - M12 plug straight 4-pole, D-coded 2.0m

PRODUCT FEATURES

• shielded M12 Ethernet connection line
• drag chain suitable
• Cat.5e, 4-pole, D-coded to IEC 61076-2-101
• side 1: M12-plug, straight
• side 2: M12-plug, straight
• extrusion-coated cable on M12 connectors
• 2x2xAWG22/7, tinned with plastic foil
• inner sheath FRNC, aluminium-coated plastic foil
• overall shield: tinned copper braid, approx. 85% covered
• Profinet (WS-GE-BL-OR) wiring
• green cable, PUR
• standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m
• other cable lengths on request



ORDERING INFORMATION


Part Number Article Number Description
142M1D11020 4250184139454 Connection line M12 plug straight - M12 plug straight 4-pole, D-coded 2.0 m



DOCUMENTS

142M1D11020 DATASHEET
