4250184171096 - M12 Jack X-coded IP67, field assembly with flange

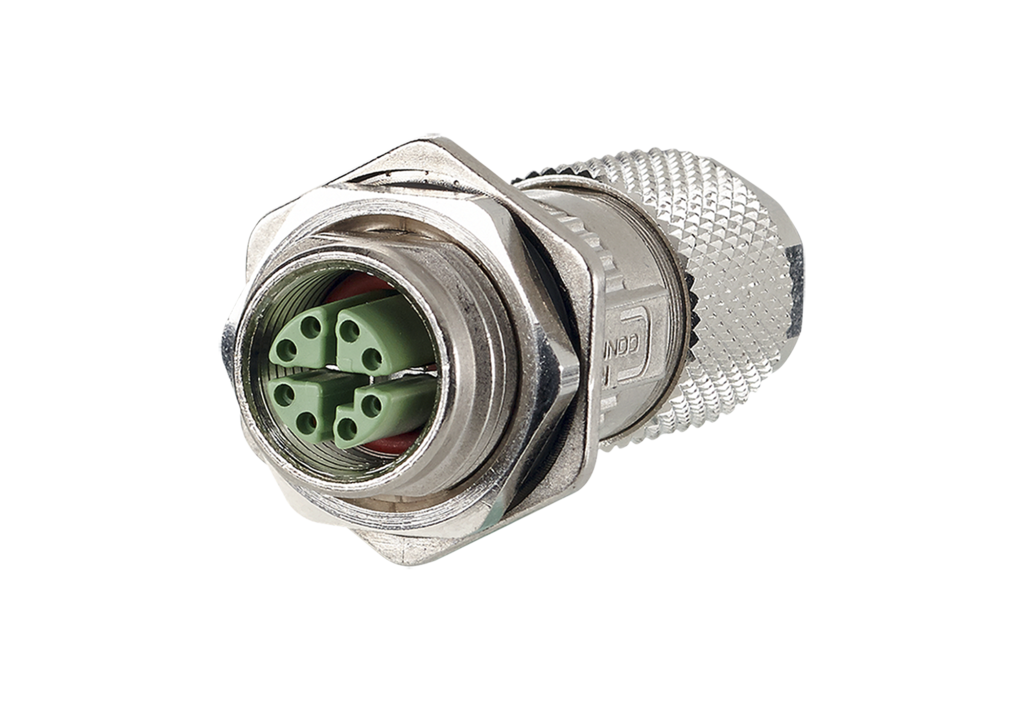

Metz Connect MMF881A315-0001 is an M12 Jack X-coded IP67, field assembly with flange

PRODUCT FEATURES

• 8-pole M12 jack for field assembly Cat.6A
• per IEC/PAS 61076-2-109 with flange
• suitable for 10 GBit as per IEEE 802.3an
• AWG 26/1 to 22/1, AWG 26/7 to 22/7 can be connected
• solid copper wire diameter 0.4 to 0.64 mm
• stranded copper wire diameter 0.48 to 0.76 mm
• wire diameter with isolation up to 1.6 mm
• overall cable diameter from 5.0 to 9.7 mm
• jack consists of only two parts
• easy assembly without special tools
• industry-compatible zinc die-cast housing
• suitable for applications in the railway industry

ORDERING INFORMATION

Part Number Article Number Description
MMF881A315-0001 4250184171096 M12 Jack X-coded IP67, field assembly with flange



DOCUMENTS

MMF881A315-0001 DATASHEET
