NB3800 Series
NB3800 Series

Netmodule

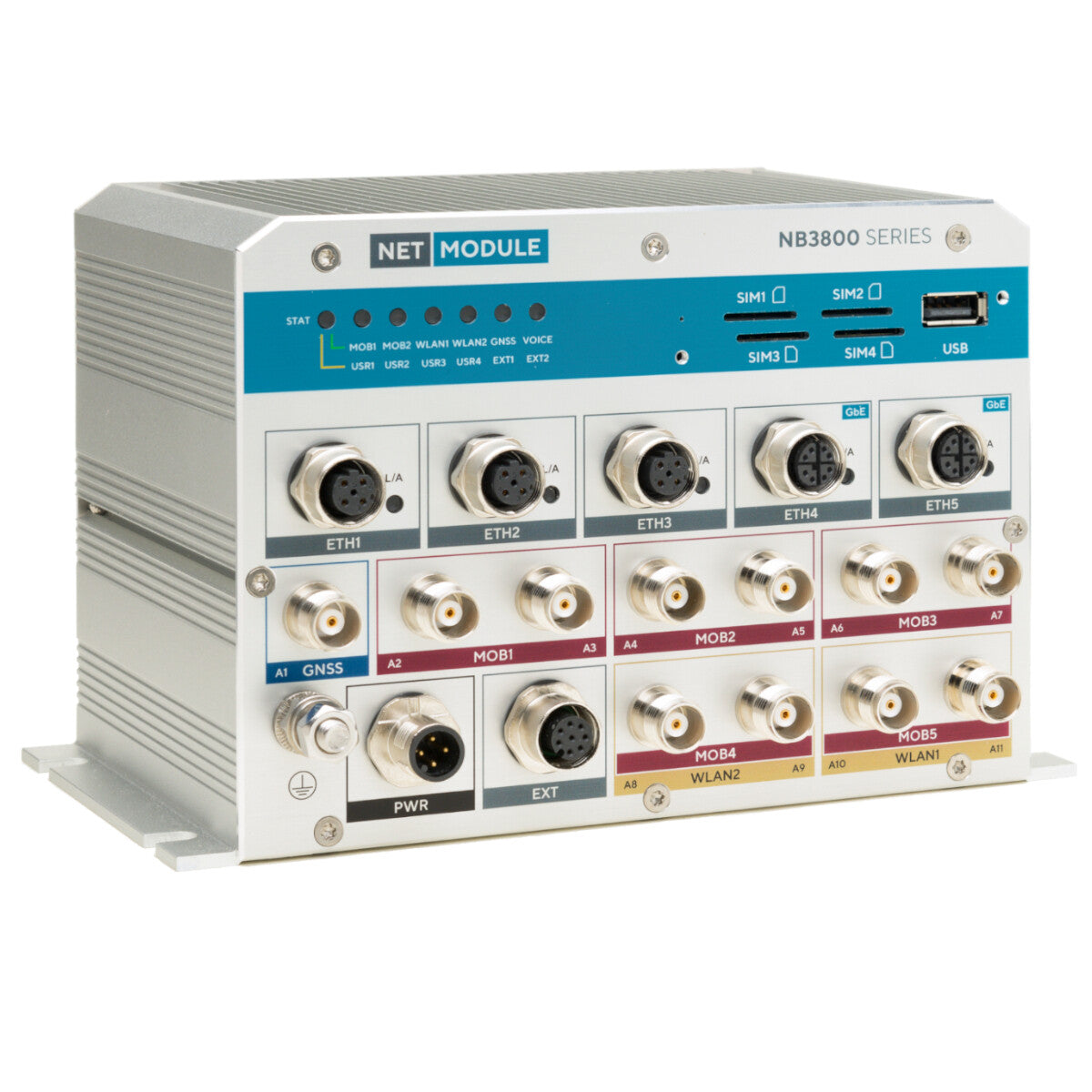

NB3800 Series

Powerful Wireless Railway Router with Multiple LTE Advanced

Netmodule NB3800 Series is a Powerful wireless router with multiple LTE Advanced, WiFi, Ethernet, SSD storage, GNSS, ITxPT, and EN50155

FEATURES

  • 4x LTE Advanced, LTE, UMTS, GSM, GSM-R, 4x mini-SIM
  • 1x Dual Band IEEE 802.11a/b/g/n/ac (Wi-Fi 5) and Bluetooth 4.2 in access-point mode
  • 2x Gigabit Ethernet, 3x Fast Ethernet, 1x USB 2.0
  • 2x extension for additional interfaces such as RS-232, RS-485, digital I/O, IBIS, CAN, audio, ...
  • Multi-GNSS via Beidou, Galileo, GLONASS, GPS
  • Up to 1 TB SSD memory expansion
  • Software: Routing, Network Services, VPN, firewall, link management, supervisor, CAPWAP, MQTT, FSM2IP, SDK, Linux Container (LXC); free updates
  • Operating environment: -40 °C/-40 °F to +70 °C/+158 °F (EN 50155 class OT4/ST0), IP40 (optionally IP65)
  • Input voltage: 24 VDC to 48 VDC or 72 VDC to 110 VDC
  • Conformity: CE (RED), railway type approval (EN 50155, EN 45545), ITxPT, road type approval (UN ECE R118, UN ECE R10) on request

ORDERING INFORMATION

Part Number Description
NB3800-2L2Wac-G Railway Router with 2x LTE + 2x WLAN-ac 5x ETH + GNSS + EN50155
NB3800-2L2WacHd-G Railway Router with 2x LTE + 2x WLAN-ac 5x ETH + GNSS + IP65 + EN50155
NB3800-2L2WacPb-G Railway Router with 2x LTE + 2x WLAN-ac + 5x ETH + 110V + GNSS + EN50155
NB3800-2Ld-G Railway Router with 2x LTE-Adv + 5x ETH + GNSS + EN50155
NB3800-2Ld2Wac-G Railway Router with 2x LTE-Adv + 2x WLAN-ac 5x ETH + GNSS + EN50155
NB3800-2LWac-G Railway Router with 2x LTE + WLAN-ac 5x ETH + GNSS + EN50155
NB3800-2LWacDf-GVi Railway Router with 2x LTE + WLAN-ac + 5x ETH + 1 TB SSD + GNSS + Virtualization + EN50155
NB3800-3LWac-G Railway Router with 3x LTE + WLAN-ac 5x ETH + GNSS + EN50155
NB3800-4L2Wac-G Railway Router with 4x LTE + 2x WLAN-ac + 5x ETH + GNSS + EN50155
NB3800-4Ld-G Railway Router with 4x LTE-Adv + 5x ETH + GNSS + EN50155
NB3800-4Ld2WacDf-GVi Railway Router with 4x LTE-Adv + 2x WLAN-ac + 5x ETH + 1 TB SSD + GNSS + Virtualization + EN50155
NB3800-L2WacCmI-GFIx Railway Router with LTE + 2x WLAN-ac 5x ETH + CAN-passive + IBIS + GNSS + FMS2IP + ITxPT + EN50155
NB3800-LGrWac-G Railway Router with LTE + GSM-R + WLAN-ac + 5x ETH + GNSS + EN50155
NB3800-LWacA-GV Railway Router with 2x LTE + WLAN-ac + 5x ETH + Audio + GNSS + Voice + EN50155
NB3800-LWacAm-GV Railway Router with 2x LTE + WLAN-ac + 5x ETH + Audio-mono + GNSS + Voice + EN50155



DOCUMENTS

NB3800 DATASHEET
