PG5901 Series

Request a quote

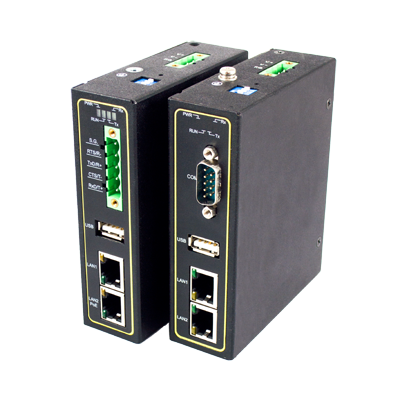

1-port and 2 x Fast Ethernet RJ45 IEC 61850 Smart Grid Protocol Gateway

ATOP PG5901 Series is a 1-port and 2 x Fast Ethernet RJ45 IEC 61850 Smart Grid Protocol Gateway with Dual 10/100 Mbps Ethernet port, 1-port RS-232/422/485, baud rate up to 921.6 Kbps

FEATURES

  • Dual 10/100 Mbps Ethernet port, Optional 802.3af PoE PD capable
  • 1-port RS-232/422/485, baud rate up to 921.6 Kbps
  • IP30 Metal housing with Aluminum heat sink
  • Strong EMC protection, works in environments from -40 to 85°C
  • Same hardware platform for different protocol conversion (Modbus TCP/RTU/ASCII, DNP3.0 TCP or serial, IEC 60870-5-101, IEC 60870-5-103, IEC 60870-5-104, IEC 61850)
  • User friendly configuration with a Java-Based Windows utility
  • Embedded IPsec, PPTP and OpenVPN for enhanced security
  • Redundancy through embedded RSTP Protocol

ORDERING INFORMATION

Part Number Article Number Description
PG5901-DB 2 x RJ45, 1 x RS-232/485/422 (D-Sub 9)
PG5901-TB 2 x RJ46, 1 x RS-232/485/422 (5-pin TB)
PG5901-PoE-DB 2 x RJ47, 1 x RS-232/485/422 (D-Sub 9), PoE PD (802.3af)
PG5901-PoE-TB 2 x RJ48, 1 x RS-232/485/422 (5-pin TB), PoE PD (802.3af)



DOCUMENTS

PG5901 BROCHURE
