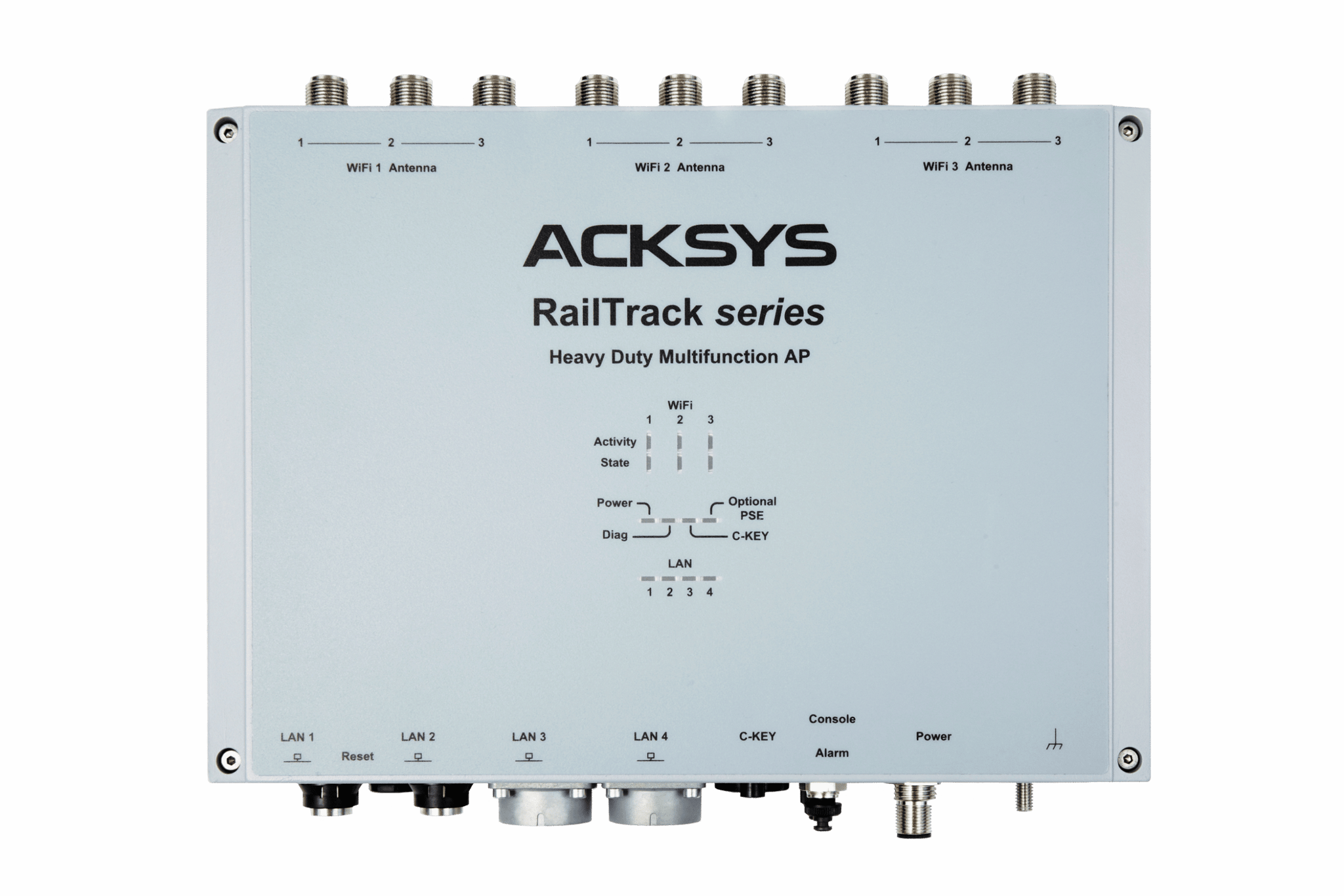

Hardened 802.11ac WiFi Access Point and Backbone Repeater


RailTrack is a ruggedized WiFi access point specifically designed for the railway industry and certified for ground and tunnel infrastructures. It can be connected to the ground network via Gigabit fiber or copper connections. Thanks to an oversized CPU architecture (Quad-Core 64-bit) and three independent high-speed 802.11ac radio cards (3T3R) delivering more than 900 Mbps (UDP) each, the RailTrack access point allows the construction of high-performance architectures (wireless backbone) to eliminate Ethernet cabling along tracks and tunnels.

FEATURES

  • Triple radio 802.11a/b/g/n/ac (3T3R MIMO), up to 3 x 1.3 Gbps (radio rate), RF power up to 29 dBm
  • MESH, WMM QoS, multiple SSID and centralized RADIUS security supported
  • 2 Gigabit Ethernet ports with 10/100/1000 base TX auto-negotiation and auto MDI/MDIX
  • 2 SFP slots: 1000 base X optical fiber or 10/100/1000 copper
  • 100 VAC to 240 VAC
  • Robust aluminum housing, IP66


ORDERING INFORMATION

Part Number Description
RailTrack/RRRXB Triple-radio WiFi access point, backbone repeater and Mesh point (IEEE 802.11a/b/g/n/ac), 100 VAC to 240 VAC (M12 connector included). Cables and SFP transceivers must be purchased separately. SFP transceivers must be compatible with SFF-8472 (1000 Mbps).


DOCUMENTS

RailTrack Datasheet
