Hirschmann

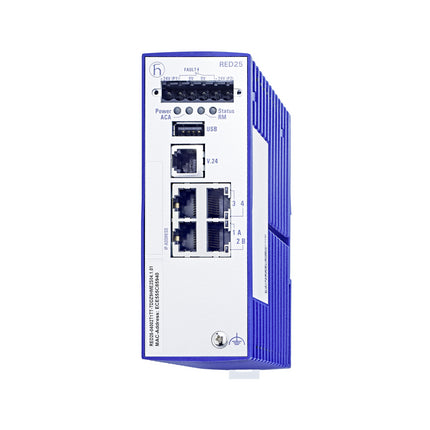

RED25 Series
Request a quote
4-port Fast Ethernet Managed REDBOX (Redundancy Box ) switches
Hirschmann RED25 Series is a range of Managed DIN-Rail Switches with 4-ports, either 4 x RJ45, or 2 x RJ45 +2 x FE SFP which support PRP,HSR and EtherNet/IP™ Device Level Ring (DLR) redundancy protocols
FEATURES
- Interruption-free data communications thanks to the redundancy technologies PRP and HSR, fast recovery with DLR, RSTP and MRP
- Two FE port types available (4 x TX and 2 x TX/2 x SFP)
- Allows for connection to existing networks SFP modules to enable flexibility for in-the-field updates
- Comprehensive security mechanisms provide all-around network protection
- Broad immunity to electrostatic discharges, plus high-vibration resistance
- Small form-factor redundancy box (RedBox)
- Supports distances up to 100 kilometers
- HiOS Layer 2 – Standard software
- 24 V power supply
- Device replacement with auto-configuration adapter ACA22-USB
- Operating temperature range from -40 ˚C to +70 ˚C (standard model: 0 ˚C to +60 ˚C)
ORDERING INFORMATION
Click the part number below for ordering information
| Part Number | Article Number | Description |
|---|---|---|
| RED25-04002Z6TT-SDDZ9HDE2S | 942 137-999-A | 4 port Managed switch with 2 x 10/100Base RJ45 and 2 x 100Base SFP ports with DLR Support and HIOS Layer 2 software |
| RED25-04002T1TT-SDDZ9HHE2S | 942 137-999-C | 4 port Managed HSR REDBOX(Redundancy Box) switch with 4 x 10/100Base RJ45 ports with HSR support and HIOS Layer 2 software |
| RED25-04002Z6TT-SDDZ9HPE2S | 942 137-999-B | 4-port Managed PRP REDBOX(Redundancy Box) switch with 2 x 10/100Base RJ45 and 2 x FE SFP slot ports with PRP Support and HIOS Layer 2 software |
| RED25-2TX/2SFP | 942 137-003 | 4 port Managed switch with 2 x 10/100Base RJ45 and 2 x FE SFP ports and HIOS Layer 2 software |
| RED25-4TX | 942 137-002 | 4 port Managed switch with 4 x 10/100Base RJ45 ports and HIOS Layer 2 software |
