RUGGEDCOM

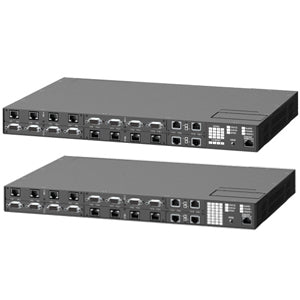

RS416 Series
Request a quote
6GK6041 - Serial Device Server with Integrated 4-Port Managed Ethernet Switch
The RUGGEDCOM RS416 Series is a 16 port serial device server with integrated 4 port managed Ethernet switch and IEEE1588 v2 to IRIG-B conversion
FEATURES
- Modular design allows for 4, 8, 12, or 16 serial ports
- Software selectable EIA/TIA RS232, RS485, RS422 serial ports with IRIG-B outputs
- Serial Fiber Interface (ST)
- Transmit serial data over an IP network
- Support for Modbus TCP, DNP 3, TIN serial protocols
- Baud rates up to 230 kbps
- Raw socket mode allows conversion of any serial protocol
- Point-to-point and multi-point modes
- Converts Modbus RTU to Modbus; Multiple Modbus masters
- Converts DNP3.0 to DNP over UDP/TCP
RS416 CONFIGURATOR
| Model | |
|---|---|
| RS416 - Main - Mount - PS1 - PS2 - S1 - S2 - S3 - S4 - S5 - S6 - MOD | Industrially hardened serial device server with an integrated, fully managed, Ethernet switch, up to 16 serial ports & up to 4 Ethernet ports, Copper or Fiber options |
| Main: Ethernet and Power Connectors | |
|---|---|
| R | Ethernet on rear; LED panel on front; power connector on rear |
| F | Ethernet on front; LED panel on front; power connector on rear |
| B | Ethernet on rear; LED panel on top; power connector on rear |
| T | Ethernet on front; LED panel on top; power connector on rear |
| Mount: Mounting Options | |
|---|---|
| RM | 19” Rack Mount Kit |
| DP | DIN and Panel Mount Kit |
| RD | 19” Rack, DIN, and Panel Mount Kit |
| 00 | No Mounting Option |
| PS1 and PS2: Power Supply 1 and 2(3) | |
|---|---|
| 24 | 24VDC (10-36VDC), screw terminal block |
| 48 | 48VDC (36-59VDC), screw terminal block |
| HI | 88-300VDC or 85-264VAC, screw terminal block |
| 24P | 24VDC (10-36VDC), pluggable terminal block |
| 48P | 48VDC (36-59VDC), pluggable terminal block |
| HIP | 88-300VDC or 85-264VAC, pluggable terminal block |
| XX | No Power Supply (PS2 Only) |
| S1, S2, S3, S4: Serial Port Modules for Slots 1, 2, 3, and 4 (2) | |
|---|---|
| XX | Empty (S2,S3,S4 Only) |
| 3D | 4 x RS232/RS422/RS485 via DB9 |
| 3R | 4 x RS232/RS422/RS485 via RJ45 |
| FS | 4 x Fiber Serial Interface (ST Connector) |
| ID | 4 x RS232/RS422/RS485 & IRIG-B via DB9 (1) |
| IR | 4 x RS232/RS422/RS485 & IRIG-B via RJ45 (1) |
| S5, S6: Ethernet Modules for Slots 5 and 6 (2) | |
|---|---|
| XXXX | Empty (S6 Only) |
| TX01 | 2 x 10/100Tx RJ45 |
| FL01 | 2 x 10FL - Multimode, 850nm, ST |
| FX01 | 2 x 100FX - Multimode, 1300nm, ST |
| FX02 | 2 x 100FX - Multimode, 1300nm, SC |
| FX11 | 2 x 100FX – Multimode, 1300nm, LC |
| FX03 | 2 x 100FX - Multimode, 1300nm, MTRJ |
| FX04 | 2 x 100FX - Singlemode, 1300nm, ST, 20km |
| FX05 | 2 x 100FX - Singlemode, 1300nm, SC, 20km |
| FX06 | 2 x 100FX - Singlemode, 1300nm, LC, 20km |
| FX07 | 2 x 100FX - Singlemode, 1300nm, SC, 50km |
| FX08 | 2 x 100FX - Singlemode, 1300nm, LC, 50km |
| FX09 | 2 x 100FX - Singlemode, 1300nm, SC, 90km |
| FX10 | 2 x 100FX - Singlemode, 1300nm, LC, 90km |
| IRIG | 1 x IRIG-B in, BNC 1 x IRIG-B out, BNC (S5 only) |
| MOD: Manufacturing Modifications | |
|---|---|
| XX | None |
| C01 | Conformal Coating |
1. When IR or ID are ordered the IRIG module must be ordered for slot 5
2. IEEE 1588 Hardware Assist and Internal clock capable units are only available on units sold with
the IRIG module
3. PS1 and PS2 must be both either pluggable or screw terminal block
