RUGGEDCOM

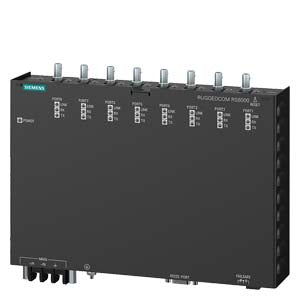

RS8000 Series
Request a quote
6GK6080-0AS2 - 8-Port Managed Fiber Optical Ethernet Switch
The RuggedSwitch™ RS8000 Family provides substation hardened, fully managed, Ethernet switches specifically designed to operate reliably in electrically and environmentally harsh environments
FEATURES
- RS8000: 8-100BaseFX
- RS8000T: 6-10/100BaseTX + 2-100BaseFX (MTRJ/LC connectors)
- RS8000H: 4 -10/100BaseTX + 4 -100BaseFX (SC/ST Connectors)
- RS8000A: 2-10/100BaseTX + 2-10BaseFL + 4-100BaseFX
- Multimode and Singlemode optical transceivers
- Industry standard fiber optical connectors: LC, SC, ST, MTRJ
CONFIGURATOR
| Model | |
|---|---|
| RS8000 - PS - FO - MS - MOD | Hardened, fully managed, Ethernet switches; 8 x 100BaseFX; 128-bit encryption |
| RS8000A - PS - FO - MS - MOD | Hardened, fully managed, Ethernet switches; 2 x 10/100BaseTX + 2 x 10BaseFL + 4 x 100BaseFX; 128-bit encryption |
| RS8000H - PS - FO - MS - MOD | Hardened, fully managed, Ethernet switches; 4 x 10/100BaseTX + 4 x 100BaseFX; 128-bit encryption |
| RS8000T - PS - FO - MS - MOD | Hardened, fully managed, Ethernet switches; 6 x 10/100BaseTX + 2 x 100BaseFX; 128-bit encryption |
| PS (Power Supply) | |
|---|---|
| 24 | 24VDC (10-36 VDC) |
| 48 | 48VDC (36-59 VDC) |
| HI | (88VDC-300VDC / 85VAC-264VAC) |
| RS8000-FO (Fiber Options) | |
|---|---|
| MM | 1300nm, MM, 2km via SFF MTRJ connectors |
| SM-X | 1310nm, SM, 15km via SFF LC connectors |
| X | 4 or 8 SM Fiber Ports |
| RS8000A-FO (Fiber Options for 100BaseFX Ports Only) | |
|---|---|
| MM | 1300nm, MM, 2km via SFF MTRJ connectors |
| SM | 1310nm, SM, 15km via SFF LC connectors |
| RS8000H-FO (Fiber Options) | |
|---|---|
| MMSC | 1300nm, MM, 2km via SC connectors |
| MMST | 1300nm, MM, 2km via ST connectors |
| SMSC | 1310nm, SM, 20km via SC connectors |
| SMST | 1310nm, SM, 20km via ST connectors |
| RS8000T-FO (Fiber Options) | |
|---|---|
| MM | 1300nm, MM, 2km via SFF MTRJ connectors |
| SM | 1310nm, SM, 15km via SFF LC connectors |
| 0 | No Fiber Ports |
| MS (Managed Switch Functions) | |
|---|---|
| UM | Unmanaged |
| MS | Managed Switch option |
| MOD: Manufacturing Modifications | |
|---|---|
| XX | None |
| C01 | Conformal Coating |
