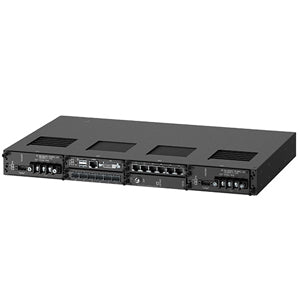

RX1501 Series (Obsolete)
Request a quote6GK6015 - Utility Grade Layer 2 and Layer 3 Switch and Router
RX1501 series is obsolete from October 2024 - superseded by RX1536 series.
Please contact us for further assistance
The RX1501 Series is a utility grade layer 2 and layer 3 switch and router with up to 36-ports 100FX; up to 36-ports 10/100TX; up to 4-ports Gigabit Ethernet Up to 18 ports 10FL/100SX SC, ST, LC and MTRJ Pluggable Optics (SFP)
FEATURES
- Field replaceable line modules
- Up to 36-ports 100FX
- Up to 36-ports 10/100TX
- Up to 8-ports Gigabit Ethernet
RX1501 CONFIGURATOR
| Model | |
|---|---|
| 6GK6015-0BM2 - Mount - S - PM - S1 - S2 - S3 - S4 - S5 - S6 - MOD | Utility grade layer 2 and layer 3 switch and router, up to 36-ports 100FX; up to 36-ports 10/100TX; up to 4-ports Gigabit Ethernet Up to 18 ports 10FL/100SX SC, ST, LC and MTRJ Pluggable Optics (SFP) |
| Mount: Mounting options | |
|---|---|
| A | No mounting option |
| D | 19" rack mounting kit |
| E | DIN and panel mounting kit |
| S: Switching hardware | |
|---|---|
| B | Layer 2 switch |
| C | Layer 3 switch |
| PM: Power Module | |
|---|---|
| 0 | No power module |
| 1 | 24 VDC (15-36 VDC) with screw terminal block |
| 2 | 48 VDC (36-72 VDC) with screw terminal block |
| 3 | High voltage (88-300 VDC / 85-264 VAC) with screw terminal block |
| 4 | 24 VDC (15-36 VDC) with pluggable terminal block |
| 5 | 48 VDC (36-72 VDC) with pluggable terminal block |
| 6 | High voltage (88-300 VDC / 85-264 VAC) with pluggable terminal block |
| 7 | 12 VDC (9-15 VDC) with screw terminal block |
| 8 | 12 VDC (9-15 VDC) with pluggable terminal block |
| Z Options | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Blank module | B00 | C00 | D00 | E00 | F00 | G00 |
| 6 x 10/100BASE-TX RJ45 | B01 | C01 | D01 | E01 | F01 | G01 |
| 2 x 10/100/1000BASE-TX RJ45 | B02 | C02 | ||||
| 6 x Serial RS232 / RS422 / RS485 with RJ45 | B03 | C03 | D02 | E02 | F02 | G02 |
| 3 x 10BASE-FL / 100BASE-SX, multi-mode, 850 nm, ST, 2 km | B15 | C15 | D03 | E03 | F03 | G03 |
| Blank module | B00 | C00 | D00 | E00 | F00 | G00 |
| 6 x 10/100BASE-TX RJ45 | B01 | C01 | D01 | E01 | F01 | G01 |
| 2 x 10/100/1000BASE-TX RJ45 | B02 | C02 | ||||
| 6 x Serial RS232 / RS422 / RS485 with RJ45 | B03 | C03 | D02 | E02 | F02 | G02 |
| 3 x 10BASE-FL / 100BASE-SX, multi-mode, 850 nm, ST, 2 km | B15 | C15 | D03 | E03 | F03 | G03 |
| 4 x 100BASE-FX, multi-mode, 1300 nm, LC, 2 km | B16 | C16 | D04 | E04 | F04 | G04 |
| 4 x 100BASE-FX SFP, blank (no optical transceiver) | B21 | C21 | D09 | E09 | F09 | G09 |
| 6 x 100BASE-FX SFP, blank (no optical transceiver) | B26 | C26 | D14 | E14 | F14 | G14 |
| 2 x 1000BASE-LX, single-mode, 1300 nm, LC, 10 km | B33 | C33 | ||||
| 2 x 1000BASE-LX SFP, blank (no optical transceiver) | B36 | C36 | ||||
| 1 x T1/E1 RJ48 (channelized/unchannelized) | B41 | C41 | D19 | E19 | F19 | G19 |
| 2 x T1/E1 RJ48 (channelized/unchannelized) | B42 | C42 | D20 | E20 | F20 | G20 |
| 4 x T1/E1 RJ48 (channelized/unchannelized) | B43 | C43 | D21 | E21 | F21 | G21 |
| 2 x E1 (75 Ohm) BNC (channelized/unchanelized) | B45 | C45 | D23 | E23 | F23 | G23 |
| 1 x Cellular (GSM/EDGE/HSPA) | B46 | C46 | D24 | E24 | F24 | G24 |
| 2 x Cellular (GSM/EDGE/HSPA) | B47 | C47 | D25 | E25 | F25 | G25 |
| 1 x Cellular (EVDO rev. A, Verizon USA) | B48 | C48 | D26 | E26 | F26 | G26 |
| 2 x Cellular (EVDO rev. A, Verizon USA) | B49 | C49 | D27 | E27 | F27 | G27 |
| 2 x Cellular (GSAM/EDGE/HSPA/EVDO rev. A, Verizon USA) | B50 | C50 | D28 | E28 | F28 | G28 |
| 1 x DDS RJ48 (56K Master/Slave 64K slave) | B51 | C51 | D29 | E29 | F29 | G29 |
| APE1402 (1.3 GHz, 2GB RAM, 8GB SATA, video, USB, Linux) | B52 | C52 | D30 | E30 | F30 | G30 |
| APE1402W7 (1.3 GHz, 2GB RAM, 8GB SATA, video, USB, Windows 7 Embedded) | B53 | C53 | D31 | E31 | F31 | G31 |
| APE1404 (1.3 GHz, 2GB RAM, 16GB SATA, video, USB, Linux) | B54 | C54 | D32 | E32 | F32 | G32 |
| APE1404W7 (1.3 GHz, 2GB RAM, 16GB SATA, video, USB, Windows 7 Embedded) | B55 | C55 | D33 | E33 | F33 | G33 |
| APE1404CKP (1.3 GHz, 2GB RAM, 16GB SATA, video, USB Check Point Gaia). Requires Check Point license. | B56 | C56 | D34 | E34 | F34 | G34 |
| 2 x 10/100/1000BASE-TX M12 (8-pin) | B57 | C57 | ||||
| 4 x 10/100BASE-TX M12 (8-pin) | B58 | C58 | D36 | E36 | F36 | G36 |
| 4 x 10/100BASE-TX M12 (4-pin) | B59 | C59 | D37 | E37 | F37 | G37 |
| 2 x 10/100/1000BASE-TX M12 with controlled bypass (8-pin) | B60 | C60 | ||||
| 4 x 10/100BASE-TX M12 with controlled bypass (8-pin) | B61 | C61 | D61 | E61 | F61 | G61 |
| 4 x 10/100BASE-TX M12 with controlled bypass (4-pin) | B62 | C62 | D62 | E62 | F62 | G62 |
| 2 x 10/100/1000BASE-TX M12 (8-pin, X-coded) | B63 | C63 | ||||
| 2 x 10/100/1000BASE-TX M12 with controlled bypass (8-pin, X-coded) | B64 | C64 | ||||
| 1 x 4G/LTE for usage in European Union (EU) | B65 | C65 | D65 | E65 | F65 | G65 |
| 1 x 4G/LTE for usage in USA & Canada (AT&T/Rogers/Telus/Bell) | B66 | C66 | D66 | E66 | F66 | G66 |
| 1 x 4G/LTE for usage in USA (Verizon) | B67 | C67 | D67 | E67 | F67 | G67 |
| 1 x 4G/LTE for usage in Asia Pacific | B68 | C68 | D68 | E68 | F68 | G68 |
| Z options for software | |
|---|---|
| Layer 2 standard edition | A00 |
| Layer 3 standard edition (only with Layer 3 hardware) | A01 |
| Layer 3 standard edition (only with Layer 2 hardware) | A02 |
| Layer 3 security edition (only with Layer 3 hardware) | A03 |
| Layer 3 security edition (only with Layer 2 hardware) | A04 |
| MOD: Manufacturing modification | |
|---|---|
| 0 | None |
| 1 | Conformal coating |
