RX1512 Series
RX1512 Series

RUGGEDCOM

RX1512 Series

Request a quote

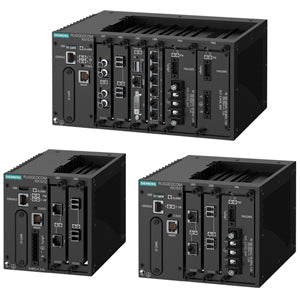

6GK6015 - Utility Grade Layer 2 and Layer 3 Switch and Router

The RX1512 Series is a utility grade layer 2 and layer 3 switch and router in a compact form factor with up to 24 10/100BaseTx, up to 8 Gigabit Ports up to 12 100BaseFx Ports Up to 8 ports 10FL/100SX SC, ST, LC and MTRJ Pluggable Optics (SFP)

FEATURES

  • Field replaceable line modules
  • Up to 24-ports 100FX (RX1510)
  • Up to 24-ports 10/100TX (RX1510)
  • Up to 8-ports Gigabit Ethernet (RX1510)



CONFIGURATOR

Model
6GK6015-1CM2 - Mount - S - S1 - S2 - MOD Utility grade layer 2 and layer 3 switch and router in a compact form factor, Up to 24 10/100BaseTx, Up to 8 Gigabit Ports Up to 12 100BaseFx Ports Up to 8 ports 10FL/100SX SC, ST, LC and MTRJ Pluggable Optics (SFP)



Mount: Mounting options
A No mounting option
E DIN and panel mounting kit



S: Switching hardware
B Layer 2 switch
C Layer 3 switch



Z options for software
Layer 2 standard edition A00
Layer 3 standard edition (only with Layer 3 hardware) A01
Layer 3 standard edition (only with Layer 2 hardware) A02
Layer 3 security edition (only with Layer 3 hardware) A03
Layer 3 security edition (only with Layer 2 hardware) A04



Z Options S1 S2
Blank module B00 C00
6 x 10/100BASE-TX RJ45 B01 C01
Blank module B00 C00
6 x 10/100BASE-TX RJ45 B01 C01
2 x 10/100/1000BASE-TX RJ45 B02 C02
6 x Serial RS232 / RS422 / RS485 with RJ45 B03 C03
3 x 10BASE-FL / 100BASE-SX, multi-mode, 850 nm, ST, 2 km B15 C15
4 x 100BASE-FX, multi-mode, 1300 nm, ST, 2 km B16 C16
4 x 100BASE-FX SFP, blank (no optical transceiver) B21 C21
6 x 100BASE-FX SFP, blank (no optical transceiver) B26 C26
2 x 1000BASE-LX, single-mode, 1300 nm, LC, 10 km B33 C33
2 x 1000BASE-LX SFP, blank (no optical transceiver) B36 C36
1 x T1/E1 RJ48 (channelized/unchannelized) B41 C41
2 x T1/E1 RJ48 (channelized/unchannelized) B42 C42
4 x T1/E1 RJ48 (channelized/unchannelized) B43 C43
2 x E1 (75 Ohm) BNC (channelized/unchanelized) B45 C45
1 x Cellular (GSM/EDGE/HSPA) B46 C46
2 x Cellular (GSM/EDGE/HSPA) B47 C47
1 x Cellular (EVDO rev. A, Verizon USA) B48 C48
2 x Cellular (EVDO rev. A, Verizon USA) B49 C49
2 x Cellular (GSAM/EDGE/HSPA/EVDO rev. A, Verizon USA) B50 C50
1 x DDS RJ48 (56K Master/Slave 64K slave) B51 C51
APE1402 (1.3 GHz, 2GB RAM, 8GB SATA, video, USB, Linux) B52 C52
APE1402W7 (1.3 GHz, 2GB RAM, 8GB SATA, video, USB, Windows 7 Embedded) B53 C53
APE1404 (1.3 GHz, 2GB RAM, 16GB SATA, video, USB, Linux) B54 C54
APE1404W7 (1.3 GHz, 2GB RAM, 16GB SATA, video, USB, Windows 7 Embedded) B55 C55
APE1404CKP (1.3 GHz, 2GB RAM, 16GB SATA, video, USB, Check Point Gaia). Requires Check Point license B56 C56
2 x 10/100/1000BASE-TX M12 (8-pin) B57 C57
4 x 10/100BASE-TX M12 (8-pin) B58 C58
4 x 10/100BASE-TX M12 (4-pin) B59 C59
2 x 10/100/1000BASE-TX M12 with controlled bypass (8-pin) B60 C60
4 x 10/100BASE-TX M12 with controlled bypass (8-pin) B61 C61
4 x 10/100BASE-TX M12 with controlled bypass (4-pin) B62 C62
2 x 10/100/1000BASE-TX M12 (8-pin, X-coded) B63 C63
2 x 10/100/1000BASE-TX M12 with controlled bypass (8-pin, X-coded) B64 C64
1 x 4G/LTE for usage in European Union (EU) B65 C65
1 x 4G/LTE for usage in USA & Canada (AT&T/Rogers/Telus/Bell) B66 C66
1 x 4G/LTE for usage in USA (Verizon) B67 C67
1 x 4G/LTE for usage in Asia Pacific B68 C68



MOD: Manufacturing modification
0 None
1 Conformal coating
