6GK6015 - 24-Port Rugged Ethernet Switch and Router

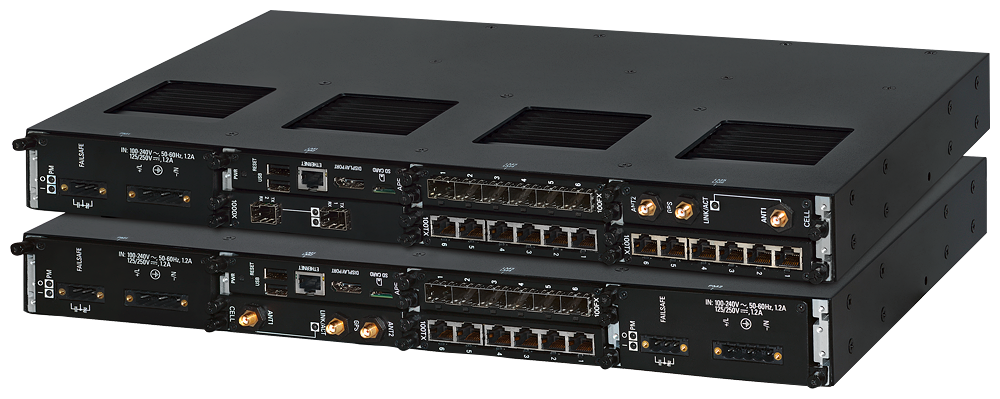

RX1524 Series is a 24-port Rack mount, modular, rugged Ethernet switch and router with enhanced routing, switching and security functionalities

CONFIGURATOR

Model
6GK6015-0CM2 - Mount - S - PM1 - PM2 - S1 - S2 - S3 - S4 - MOD Rugged, modular layer 2 switch + layer 3 router with up to 24-ports 100FX; up to 24-ports 10/100TX; up to 8-ports Gigabit Ethernet; up to 12 ports 10FL/100SX; ST, LC and M12 connectors



Mount: Mounting Options
A No Mounting Option
D 19" rack mounting kit
E DIN and panel mounting kti



S: Switch Hardware
C Layer 3 Switch



PM1: Power Module 1
0 No power module 1
1 24 VDC (15-36 VDC) with screw terminal block
2 48 VDC (36-72 VDC) with screw terminal block
3 High voltage (88-300 VDC / 85-264 VAC) with screw terminal block
4 24 VDC (15-36 VDC) with pluggable terminal block
5 48 VDC (36-72 VDC) with pluggable terminal block
6 High voltage (88-300 VDC / 85-264 VAC) with pluggable terminal block
7 12 VDC (9-15 VDC) with screw terminal block
8 12 VDC (9-15 VDC) with pluggable terminal block



PM2: Power Module 2
0 No power module 2
1 24 VDC (15-36 VDC) with screw terminal block
2 48 VDC (36-72 VDC) with screw terminal block
3 High voltage (88-300 VDC / 85-264 VAC) with screw terminal block
4 24 VDC (15-36 VDC) with pluggable terminal block
5 48 VDC (36-72 VDC) with pluggable terminal block
6 High voltage (88-300 VDC / 85-264 VAC) with pluggable terminal block
7 12 VDC (9-15 VDC) with screw terminal block
8 12 VDC (9-15 VDC) with pluggable terminal block



Z Options for Software
A01 Layer 3 standard edition (only with Layer 3 hardware)
A03 Layer 3 security edition (only with Layer 3 hardware)



Z Options S1 S2 S3 S4
Blank module B00 C00 D00 E00
6 x 10/100BASE-TX RJ45 B01 C01 D01 E01
2 x 10/100/1000BASE-TX RJ45 B02 C02 D02 E02
6 x Serial RS232 / RS422 / RS485 with RJ45 B03 C03 D03 E03
3 x 10BASE-FL / 100BASE-SX, multi-mode, 850 nm, ST, 2 km B15 C15 D15 E15
4 x 100BASE-FX, multi-mode, 1300 nm, LT, 2 km B16 C16 D16 E16
4 x 100BASE-FX SFP, blank (no optical transceiver) B21 C21 D21 E21
4 x 100BASE-FX SFP multimode 1310 nm LC 2km B22 C22 D22 E22
6 x 100BASE-FX SFP, blank (no optical transceiver) B26 C26 D26 E26
6 x 100BASE-FX SFP multimode 1310 nm LC 2km B27 C27 D27 E27
2 x 1000BASE-LX, single-mode, 1300 nm, LC, 10 km B33 C33 D33 E33
2 x 1000BASE-LX SFP, blank (no optical transceiver) B36 C36 D36 E36
2 x 1000BASE-SX SFP multimode 850 nm LC 500m B37 C37 D37 E37
1 x Cellular (GSM/EDGE/HSPA) B46 C46 D46 E46
1 x Cellular (EVDO rev. A, Verizon USA) B48 C48 D48 E48
2 x 10/100/1000BASE-TX M12 (8-pin) B57 C57 D57 E57
4 x 10/100BASE-TX M12 (8-pin) B58 C58 D58 E58
4 x 10/100BASE-TX M12 (4-pin) B59 C59 D59 E59
2 x 10/100/1000BASE-TX M12 with controlled bypass (8-pin) B60 C60 D60 E60
4 x 10/100BASE-TX M12 with controlled bypass (8-pin) B61 C61 D61 E61
4 x 10/100BASE-TX M12 with controlled bypass (4-pin) B62 C62 D62 E62
2 x 10/100/1000BASE-TX M12 (8-pin, X-coded) B63 C63 D63 E63
2 x 10/100/1000BASE-TX M12 with controlled bypass (8-pin, X-coded) B64 C64 D64 E64
1 x 4G/LTE for usage in European Union (EU) B65 C65 D65 E65
1 x 4G/LTE for usage in USA & Canada (AT&T/Rogers/Telus/Bell) B66 C66 D66 E66
1 x 4G/LTE for usage in USA (Verizon) B67 C67 D67 E67
1 x 4G/LTE for usage in Asia Pacific B68 C68 D68 E68
2 x APE1808LNX (Atom x5-E3940, 8GB RAM, 64GB eMMC, DisplayPort, uSD, USB, Linux) B72 C72 D72 E72
2 x APE1808W10 (Atom x5-E3940, 8GB RAM, 64GB eMMC, DisplayPort, uSD, USB, Windows 10) B73 C73 D73 E73
2 x APE1808ADM (Atom x5-E3940, 8GB RAM, 64GB eMMC, DisplayPort, uSD, USB, CROSSBOW ADM agent software) B75 C75 D75 E75
1 x 3G/LTE North America (AT&T, Verizon, Rogers, Bell, Telus) B80 C80 D80 E80



MOD: Manufacturing Modification
0 None
1 Conformal Coating
