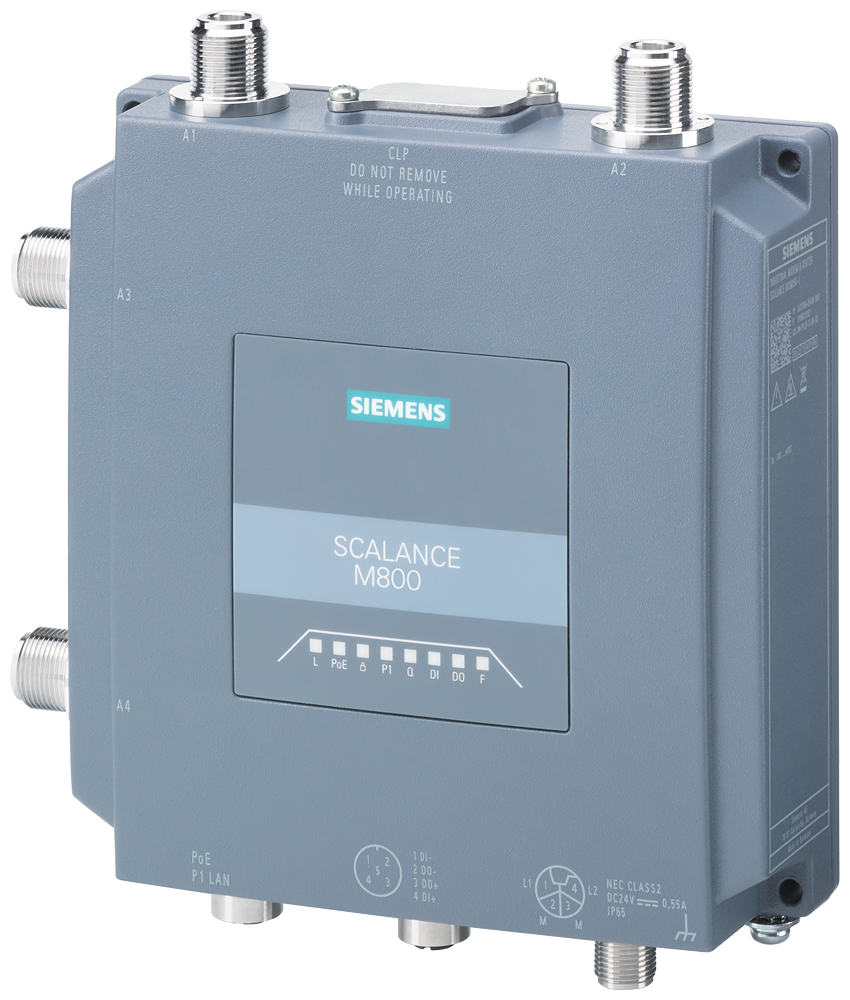

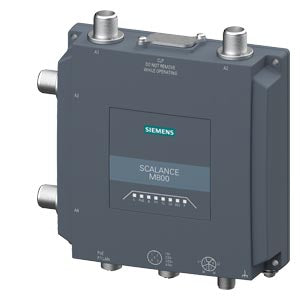

Mobile wireless industrial 5G router

SCALANCE MUM856-1 supports 4G as well as 5G. In an IP65 enclosure, the device was developed for applications in demanding industrial environments and can be used in both public and private 5G campus networks.

FEATURES

  • 4x N-Connect antenna connectors
  • 1x Gbit Ethernet port with PoE (802.3 af)
  • Micro SIM slot
  • Digital input / digital output allows easy connections with I/O modules
  • Can connect to public and private 5G networks
  • Convenient central management of VPN connections via SINEMA Remote Connect
  • Easy integration of SCALANCE MUM856-1 in SINEMA Remote Connect via autoconfiguration
  • Integrated encryption and access mechanisms in SCALANCE MUM856-1 for uncompromised security
  • Supported security mechanisms: IPsec, OpenVPN, Firewall
  • Withstands strong shocks and vibrations
  • Reliable performance in extended temperature ranges (-30 °C to +60 °C)
  • Redundant power supply 24 V DC
  • Diverse mounting options: wall, directly on stationary or mobile equipment, DIN rail mount
  • Form factor identical to SCALANCE Wi-Fi 6 client modules enable the switching of communication technologies without changing the design layout of the machines.
  • Seamless fallback on 4G/3G where/when 5G is not – yet – available
  • Systematic testing of design and materials via the "Highly Accelerated Life Test" (HALT), which simulates an accelerated product life cycle through planned overloading

ORDERING INFORMATION

Routers

Part Number Article Number Description
MUM856-1 (EU) 6GK5856-2EA00-3DA1 Scalance MUM856-1 (EU) 5G Router, IP65, for wireless IP communication of Ethernet-based applications via public 3G/4G/5G mobile radio networks and private 5G networks, optimized for use in Europe, VPN, firewall, NAT, IPv6, connection to SINEMA RC via CLP, 4 N- Connect connections, 1x micro SIM slot, 1x10/100/1000 Mbps M12 socket. redundant DC 24 V, M12 L-coded, PoE, -30... +60 °C, CLP slot, 1x DI and 1x DO, A-coded, observe national approvals!
mum856-1 (RoW) 6GK5856-2EA00-3AA1 SCALANCE MUM856-1 (RoW) 5G Router, IP65, for wireless IP communication of Ethernet-based applications via public 3G/4G/5G mobile radio networks and private 5G networks, VPN, firewall, NAT, IPv6, connection to SINEMA RC via CLP, 4 N- Connect connections, 1x micro SIM slot, 1x10/100/1000 Mbps M12 socket, redundant DC 24 V, M12 L-coded, PoE, -30... +60 °C, CLP slot, 1x DI and 1x DO, A-coded, observe national approvals!


Accessories

Part Number Article Number Description
SCALANCE CLP 2GB SINEMA RC 6GK5908-0UA00-0AA0 SCALANCE CLP 2 GB SINEMA RC removable data storage medium for enabling connection to SINEMA Remote Connect for SCALANCE MUM85X, for easy device replacement in the event of a fault, and for storing configuration data
SCALANCE CLP 2GB 6GK1900-0UB00-0AA0 SCALANCE CLP 2 GB removable data storage medium for easy device replacement in the event of a fault, and for storing configuration data; can be used in the following products with CLP slot: SCALANCE, e.g., SCALANCE W1700 SIMATIC Cloud Connect S7
DIN rail mounting adapter W778/W778EEC/ W738/ MUM856-1 6GK5798-8MF00-0AA1 Adapter plate for DIN rail mounting (DIN rail) in combination with SCALANCE W778/ W778EEC/ W738/ WAM/WUM766-1/ MUM856-1
Angle adapter for DIN rail mounting 6GK5798-8MF00-0AB1 90° angle adapter for DIN rail mounting, only for use in combination with SCALANCE MUM856-1, WAM/WUM766-1; scope of delivery: Bracket with DIN rail mounting adapter for 35 mm standard DIN rail, fixing screws


Antennas for public and private 5G networks:

Please note that an antenna must always be connected to the antenna connectors A1 and A2. The antenna connectors A3 and A4 can be connected to an antenna when higher download speeds are to be achieved.

Part Number Article Number Description
ANT897-4MC 6GK5897-4MC00-0AA0 ANT897-4MC mobile wireless antenna for public 3G/4G/5G mobile wireless networks and private 5G networks worldwide; omnidirectional characteristic; 600 ... 5000 MHz; antenna gain: 2 ... 3 dBi, incl. N-connect male connector, IP67; -30 ... +70 °C, note country approvals; for direct mounting with N-connect connection technology
ANT897-4ME 6GK5897-4ME00-0AA0 ANT897-4ME antenna for public 3/4/5G mobile wireless networks and private 5G networks worldwide; omnidirectional characteristic; 600..6000 MHz; antenna gain: 2..6 dBi, including N-Connect female connection, IP65; -40..+85 °C; observe national approvals; mounting on wall or mast scope of supply: 1x ANT 897-4ME, 1x mounting bracket; compact instructions as hard copy German/English

Antennas for private 5G networks:

Part Number Article Number Description
ANT795-4MX 6GK5795-4MX0-0AA0 ANT795-4MX antenna with omnidirectional characteristic; with railway approval; incl. N-connect male connector straight: 2/2.5 dBi; IP68/69K (-40 ... +85 °C), 2.4/5 GHz WLAN and private 5G networks; note Wi-Fi compliance and country approvals, mounting directly to SCALANCE devices with N-connect connection technology;
ANT795-6MN 6GK5795-6MN10-0AA6 ANT795-6MN antenna with omnidirectional characteristic; incl. N-connect female connector: 6/8dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; observe Wi-Fi compliance and national approvals; mounted on roof and vehicles

DOCUMENTS

MUM856-1 (EU) DATASHEET

MUM856-1 (RoW) DATASHEET
