Siemens SCALANCE
SCALANCE X-100 Series
Request a quote
Unmanaged Industrial Ethernet Switches and Media Converters
Siemens SCALANCE X-100 is a series of unmanaged industrial ethernet switches and media converters with up to 24 x RJ45 ports, 2 x SC or ST
FEATURES
SCALANCE XC-100
- Up to 24x RJ45 ports/2x SC or ST/BFOC
- Transmission rate up to 100 Mbps
- IP20 degree of protection
- Temperature range 0 °C bis +60 °C
- Redundant power supply DC 24 V / AC 24 V (50/60 Hz)
- Plastic housing
- PROFINET CC-A compliant
SCALANCE XR-100WG
- Short design for double-sided installation in 19" control cabinets
- Up to 24x RJ45-Ports, 4x Comboports
- Transmission rate up to 100 Mbps
- Power supply DC 24 V or AC 100-240 V
- IP30 degree of protection
- Temperature range 0 °C bis +60 °C
SCALANCE XB-100
- Up to 24x RJ45 ports/up to 2x SC or ST/BFOC
- Transmission rate up to 100 Mbps
- IP20 degree of protection
- Temperature range -40 °C to +70 °C
- Metal/plastic housing
- Motor vehicle approval E1 (SCALANCE XC108 only)
ORDERING INFORMATION
SCALANCE XC-100
| Article Number | Description |
|---|---|

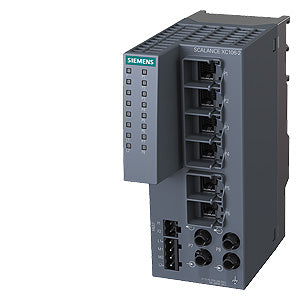

| 6GK5106-2BB00-2AC2 | SCALANCE XC106-2, Unmanaged IE switch, 6x 10/100 Mbit/s RJ45 ports, 2x 100 Mbit/s Multimode BFOC, LED diagnostics, error-signaling contact with set button, redundant Power supply Manual available as a download |
| 6GK5106-2BD00-2AC2 | SCALANCE XC106-2, Unmanaged IE switch, 6x 10/100 Mbit/s RJ45 ports, 2x 100 Mbit/s Multimode SC, LED diagnostics, error-signaling contact with set button, redundant Power supply Manual available as a download |
| 6GK5108-0BA00-2AC2 | SCALANCE XC108, Unmanaged IE switch, 8x 10/100 Mbit/s RJ45 ports, LED diagnostics, error-signaling contact with set button, redundant Power supply Manual available as a download |
| 6GK5116-0BA00-2AC2 | SCALANCE XC116, Unmanaged IE switch, 16x 10/100 Mbit/s RJ45 ports, LED diagnostics, error-signaling contact with set button, redundant Power supply Manual available as a download |

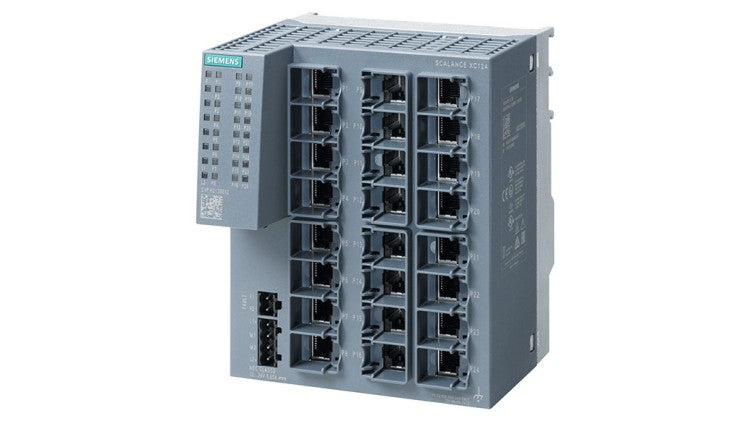

| 6GK5124-0BA00-2AC2 | SCALANCE XC124, Unmanaged IE switch, 24x 10/100 Mbit/s RJ45 ports, LED diagnostics, error-signaling contact with set button, redundant Power supply Manual available as a download |
SCALANCE XR-100WG
| Article Number | Description |
|---|---|
| 6GK5108-2QS00-3AR3 | SCALANCE XR108-2PoE WG; unmanaged IE Switch; 19" rack; 8 x 1GE electrical PoE ports; 2 x SFP 10GE port; LED diagnostics power supply 240 V AC (85 – 264 V) |
| 6GK5124-0BA00-2AR3 | SCALANCE XR124WG; unmanaged IE switch; 19" rack; 24 x 10/100 Mbit/s electrical ports; LED diagnostics; Power supply 24 V DC; |
| 6GK5124-0BA00-3AR3 | SCALANCE XR124WG; Unmanaged IE switch; 19" rack; 24 x 10/100Mbit/s electrical ports; LED diagnostics; Power supply 240 V AC (85 – 264 V) |
SCALANCE XB-100
| Article Number | Description |
|---|---|
| 6GK5108-2BB00-2AB2 | SCALANCE XB108-2 unmanaged IE switch, 8x 10/100 Mbit/s Ports, 2x 100 Mbit/s multimode BFOC, for setting up small star and line topologies, LED diagnostics, IP20, redundant power supply 24 V AC/DC Manual available as a download |
| 6GK5108-2BD00-2AB2 | SCALANCE XB108-2 unmanaged IE switch, 8x 10/100 Mbit/s Ports, 2x 100 Mbit/s multimode SC, for setting up small star and line topologies; LED diagnostics,IP20, redundant power supply, 24 V AC/DC Manual available as a download |
| 6GK5112-0BA00-2AB2 | SCALANCE XB112 unmanaged IE switch, 12x 10/100 Mbit/s RJ45 ports, for setting up small star and line topologies; LED diagnostics, IP20, Redundant power supply, 24 V AC/DC Manual available as a download |
| 6GK5116-0BA00-2AB2 | SCALANCE XB116 unmanaged IE switch, 16x 10/100 Mbit/s RJ45 ports; for setting up small star and line topologies; LED diagnostics, IP20, Redundant power supply, 24 V AC/DC Manual available as a download |
| 6GK5124-0BA00-2AB2 | SCALANCE XB124 unmanaged IE switch, 24x 10/100 Mbit/s RJ45 ports; for setting up small star and line topologies; LED diagnostics, IP20, Redundant power supply, 24 V AC/DC Manual available as a download |
SCALANCE X-100 Media Converters
| Article Number | Description |
|---|---|
| 6AG1101-1BB00-4AA3 | SIPLUS NET SCALANCE X101-1 for medial exposure based on 6GK5101-1BB00-2AA3 |

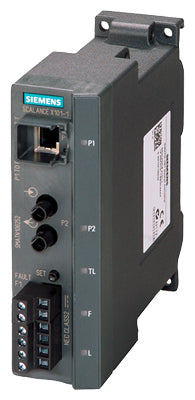

| 6GK5101-1BB00-2AA3 | SCALANCE X101-1, IE Media converter unmanaged 1x 10/100 Mbit/s RJ45 port, 1x 100 Mbit/s Multimode BFOC, LED diagnostics, error signaling Contact with Set pushbutton Redundant power supply, PROFINET-compliant securing collars, Manual available as a download available |
| 6GK5101-1BC00-2AA3 | SCALANCE X101-1LD IE Media converter unmanaged 1x 10/100 Mbit/s RJ45 port, 1x 100 Mbit/s single-mode BFOC, LED diagnostics, error signaling contact with set button, Redundant power supply, PROFINET-compliant securing collars, Manual available as a download available |
