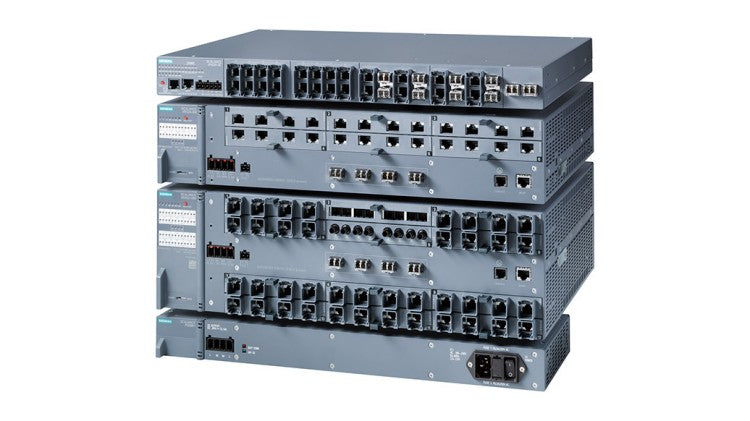

SCALANCE X-500 Series
⠀Managed Layer 3 Ethernet Switch
Siemens SCALANCE X-500 Series is a Managed Layer 3 Ethernet Switch with up to 48x RJ45 / 52x SFP ports
FEATURES
- 19" design in different height units (HU)
- Rugged metal housing
- Support of virtual networks (VLAN)
- Modular with media modules or SFP and SFP+ plug-in transceivers
- Redundant power supply
- Console port
ORDERING INFORMATION
SCALANCE XR524/XR526
| Article Number | Description |
|---|---|
| 6GK5526-8GS00-2AR2 | SCALANCE XR526-8C; managed IE switch; Layer 3 with key plug available; power supply 24 V DC; 24x 10/100/1000 Mbit/s RJ45; 8x 100/1000 Mbit/s SFP Combo; 2x 10 Gbit/S SFP+; in total 26 ports can be used; error signaling contact; select/set button; PROFINET IO device; redundancy functions; office features (RSTP, VLAN, IGMP, ...); C-plug in scope of delivery |
SCALANCE XR528
| Article Number | Description |
|---|---|
| 6GK5528-0AR00-2HR2 | SCALANCE XR528-6M; managed IE switch; 19" rack; 4x 1000/10000 Mbit/s SFP+; 6x 100/1000 Mbit/s 4-port media modules, electrical, electrical PoE or optical; LED diagnostics; error signaling contact; Select/set pushbutton, PROFINET IO device, network management, integrated redundancy manager; office features (RSTP, VLAN, IGMP, ...); C-plug in scope of delivery Layer 3 integrated; ports at the back |
SCALANCE XR552
| Article Number | Description |
|---|---|
| 6GK5552-0AR00-2HR2 | SCALANCE XR552-12M; managed IE switch, 19" rack; 4x 1000/10000 Mbit/s SFP+; 12x 100/1000 Mbit/s 4-port media modules, electrical, electrical PoE or optical; LED diagnostics; error signaling contact; Select/set pushbutton, PROFINET IO device, network management, integrated redundancy manager; office features (RSTP, VLAN, IGMP, ...); C-plug in scope of delivery Layer 3 integrated; ports at the back |
