Specialist Modules

KYLAND SICOM3028GPT Series Specialist Modules include HSR/PRP, TimeServer, TMS-Trigger, GPS, IRIG-B and Serial Modules.

FEATURES

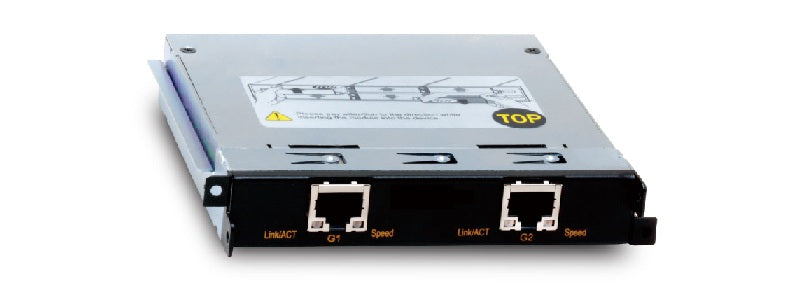

HSR/PRP Module

  • Plug-in Redbox module for reliable industrial networking in SICOM3028GPT series
  • Full FPGA hardware solution with low switching latency
  • Compliant implementation of HSR (IEC62439-3-5) and PRP (IEC62439-3-4)
  • Supports hot-swap for easy maintenance (replace the same type only)

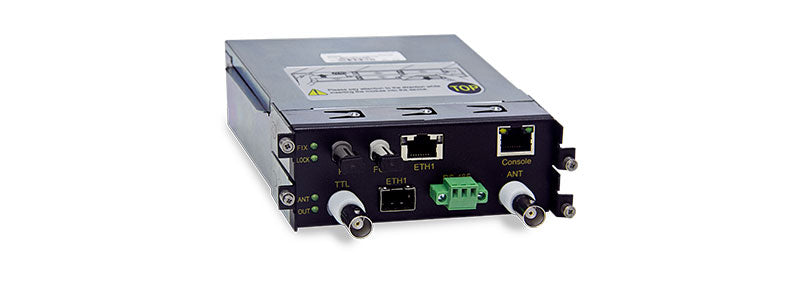

TimeServer Module

  • High Precision Reference Clock as Absolute Time Source (GPS, BDS, GLONASS)
  • Relative Reference Time and External Time Synchronization (PTP, IRIG-B)
  • High precision stable OCXO oscillator with excellent time keeping performance
  • Support PTP,NTP/SNTP,IRIG-B,PPS output
  • Report time status by SNMP, IEC61850 MMS, IEC60870-5-104, DNP over TCP etc
  • Support Web, SNMP etc. management system
  • Designed for the SICOM3028GPT-L2GT, SICOM3028GPT-L2FT, SICOM3028GPT-L3GT, SICOM3028GPT-L3FT chassis
  • Support hot-swap for easy maintenance (only can replace the same type of module)

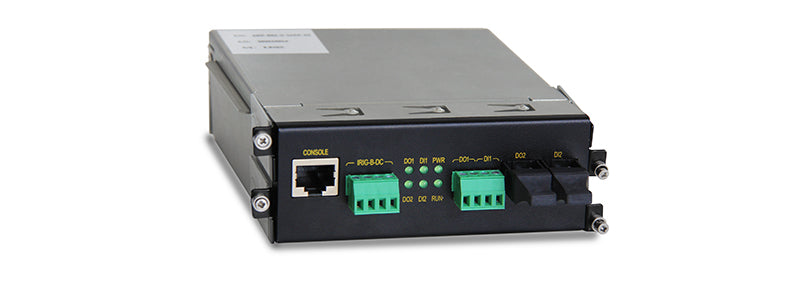

TMS-Trigger Module

  • Designed for the SICOM3028GPT-L2GT,SICOM3028GPT-L2FT,SICOM3028GPT-L3GT,SICOM3028GPT-L3FT and managed by the chassis
  • Internal time synchronized as PTP slave with the chassis
  • Supports GOOSE publish and MMS report
  • Supports optical/electrical signal input/output
  • Supports hot-swap for easy maintenance (only can replace the same type of module)

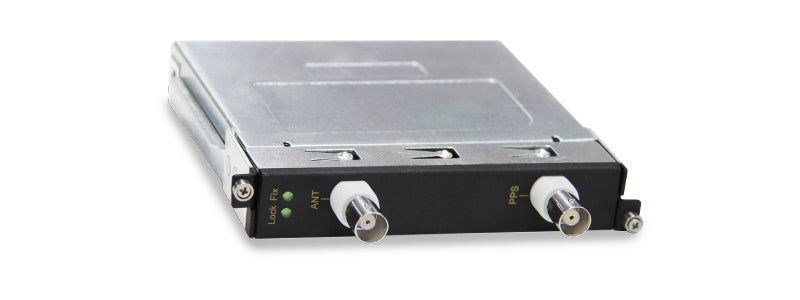

GPS Module

  • Designed for the SICOM3028GPT-L2GT,SICOM3028GPT-L2FT,SICOM3028GPT-L3GT,SICOM3028GPT-L3FT and managed by the chassis
  • 14 channels GPS C/A coding receiver
  • High precision stable crystal oscillator with excellent time keeping performance
  • One PPS +5V TTL level output with BNC connector
  • Supports hot-swap for easy maintenance (only can replace the same type of module)

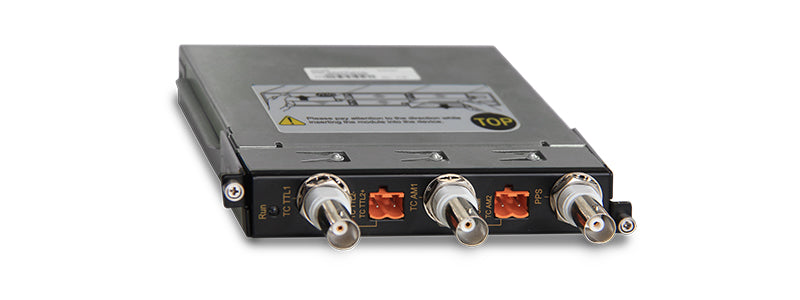

IRIG-B Module

  • Designed for the SICOM3028GPT-L2GT,SICOM3028GPT-L2FT,SICOM3028GPT-L3GT,SICOM3028GPT-L3FT and managed by the chassis
  • PTP to IRIG-B high precision clock converting
  • 2 IRIG-B(DC), 2 IRIG-B(AC), and 1 PPS outputs
  • Supports IRIG-B000,B001,B002,B003,B004,B005,B006,B007,B120,B121,B122,B123,B124,B125,B126,B127 output
  • Supports hot-swap for easy maintenance (only can replace the same type of module)

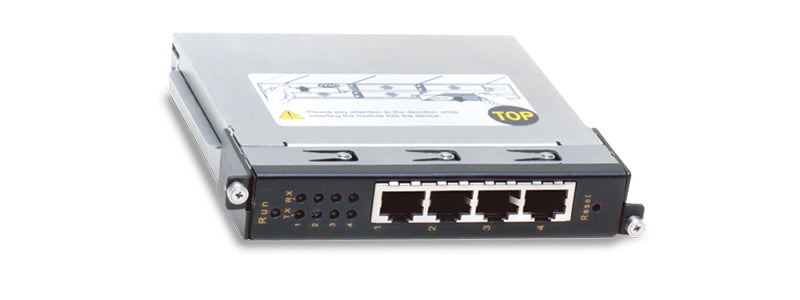

Serial Module
  • 4 RS232/422/485 serial ports, one 100M interface (backplane)
  • Supports VLAN, white list, data mirror, configuration import/export
  • Reset button for easy module reset without need to reboot the device
  • ±15kV ESD protection circuit for each serial port
  • Compliant with EMC industrial level 4
  • Supports hot-swap for easy maintenance (only can replace the same type of module)

ORDERING INFORMATION

HSR/PRP Module

Part Number Description
SM6.6-HSR/PRP-GE-0.5U HSR/PRP Redbox module, 2x100/1000Base-T RJ45 port
SM6.6-HSR/PRP-GX-0.5U HSR/PRP Redbox module, 2x1000Base-X, 100Base-FX SFP port



TimeServer Module

Part Number Description
SM6.6-TimeServer-FIO-1U-SW 1 BDS/GPS/Glonass input,BNC connector; 1 TTL output,BNC connector; 1 RS485 output,terminal block; 1 optical input; 1 optical output; 1 Gigabit combo port,SFP and RJ45; 1 console port,RJ45



TMS-Trigger Module

Part Number Description
SM6.6-TMS-Trigger-1U TMS-trigger module, 1 IRIG-B output, 1 IRIG-B input, 2 signal input, 2 signal output, 1 Console port



GPS Module

Part Number Description
SM6.6-GPS-OI-0.5U GPS module, one GPS input, BNC connector; one PPS output, BNC connector



IRIG-B Module

Part Number Description
SM6.6-PTP-BO-0.5U Irig-B module, 2 IRIG-B(DC), 2 IRIG-B(AC), and 1 PPS outputs



Serial Module

Part Number Description
SM6.6-4D-232/422/485-0.5U Serial device server module, 4xRS232/422/485 serial port
SM6.6-4D-A-4RS232/422/485-0.5U Serial device server module enhanced version, 4xRS232/422/485 serial port, supports RTS carrier flow control, Optoelectronic isolation



DOCUMENTS

HSR/PRP Module DATASHEET

TimeServer Module DATASHEET

TMS-Trigger Module DATASHEET

GPS Module DATASHEET

IRIG-B Module DATASHEET

Serial Module DATASHEET
