Expansion modules for increasing system availability up to total all-round protection

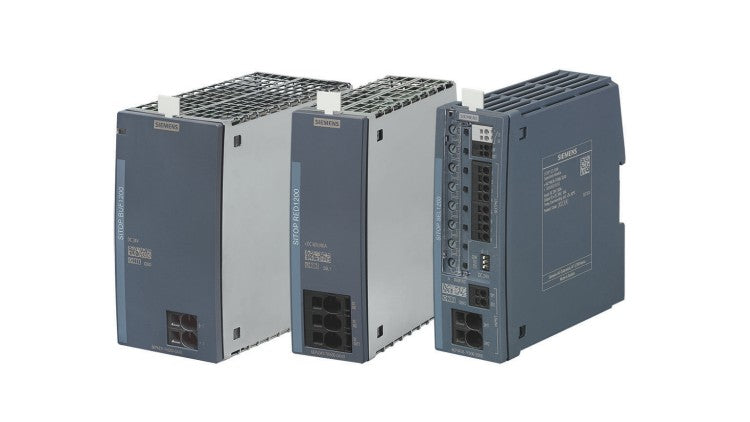

Siemens SITOP Add-on Modules is a series of Expansion modules for increasing system availability up to total all-round protection. SITOP offers you a unique range of perfectly integrable expansion modules for reliable protection against a wide variety of potential hazards on the primary and secondary side. The SITOP add-on modules allow the completely flexible expansion of SITOP power supply units and extension up to total, all-round protection.

FEATURES

SITOP redundancy module

  • Highly secure DC supply thanks to a redundant design
  • Reliable supply even when one power supply fails
  • Compact redundancy modules for power supply units up to 48 V and 40 A
  • 24-V/NEC Class 2 redundancy module limited to 100 VA
  • Decoupling of parallel-connected power supply units to enhance performance or of series-connected power supply units to increase voltage

SITOP selectivity module

  • Protection against overloads and short circuits in the 24-V circuit
  • Reliable tripping, regardless of the line resistance
  • SEL1200: switch-off characteristic for standard protection and high starting currents
  • SEL1400/PSE200U: power limiting to meet high protection requirements by stabilizing the 24 V
  • Sequential connection reduces total inrush current
  • Common signaling contact or evaluation of individual channels
  • SEL1200/1400: 8 outputs, each with diagnostics of voltage, current, set threshold, reason for disconnection (if applicable)
  • PSE200U: 4 outputs with voltage measuring point for current (1 V ≙ 1 A)

SITOP buffer module

  • Economical protection against power failure up to the seconds range
  • Support for the power supply unit when the power demand temporarily increases
  • High load current up to 40 A
  • Only two lines connecting to the power supply unit

SITOP inrush current limiters

  • Maximum service life of current-sensitive components like relays thanks to reduced current inrushes
  • Space-saving, thanks to narrow width of only 18 mm
  • Suitable for LOGO! modules and sub-distribution boards, thanks to its stepped profile
  • Flexible installation on the DIN rail, on the wall or in various other locations
  • Maximum plant configuration enabled
  • Flexible application options at temperatures ranging from -40° Celsius to +70° Celsius

ORDERING INFORMATION

Redundancy Modules

Part Number Article Number Description
PSU202U, 24 V/10 A 6EP1964-2BA00 SITOP PSE202U 10A Redundancy module Input/output: 24 V DC suitable for decoupling two SITOP power supplies with maximal per 5 A output current
PSE202U NEC Class 2, 24 V/100 W 6EP1962-2BA00 SITOP PSE202U NEC Class 2 Redundancy module Input/output: 24 V DC suitable for decoupling two SITOP power supplies Output power restricted to 100 VA
PSE202U, 24 V/40A 6EP1961-3BA21 SITOP PSE202U Redundancy module Input/output: 24 V DC/40 A suitable for decoupling two SITOP power supplies with maximal per 20 A output current
RED1200, 24/48 V/20 A 6EP4346-7RB00-0AX0 SITOP RED1200 redundancy module Input/output: 24/48 V DC/20 A Suitable for decoupling two SITOP power supplies with max. 10 A output current each
RED1200, 24/48 V/40 A 6EP4347-7RB00-0AX0 SITOP RED1200 redundancy module Input/output: 24/48 V DC/40 A Suitable for decoupling two SITOP power supplies with max. 20 A output current each



Selectivity Modules

Part Number Article Number Description
Diagnostic Module, 4x10 A 6EP1961-2BA00 SITOP select Diagnostics module 4-channel input: 24 V DC/40 A output: 24 V DC/4x 10 A Level adjustable 2-10 A
SEL1200 10 A 4x10 A 6EP4437-7FB00-3CX0 SITOP SEL1200 10 A Selectivity module 4-channel with switching characteristic Input: 24 V DC/40 A Output: 24 V DC/4x 10 A Threshold value adjustable 2-10 A With monitoring interface
SEL1200 5 A 8x5 A 6EP4437-7FB00-3DX0 SITOP SEL1200 5 A Selectivity module 8-channel with switching characteristic Input: 24 V DC/40 A Output: 24 V DC/8x 5 A Threshold adjustable 1-5 A With monitoring interface
SEL1200 10 A 8x10 A 6EP4438-7FB00-3DX0 SITOP SEL1200 Selectivity module 8-channel switching characteristic Input: 24 V DC/60 A output: 24 V DC/8 x 10 A Level adjustable 2-10 A with monitoring interface
SEL1400 10 A 4x10 A 6EP4437-7EB00-3CX0 SITOP SEL1400 10 A Selectivity module 4-channel with limiting characteristic Input: 24 V DC/40 A Output: 24 V DC/4x 10 A Threshold value adjustable 2-10 A With monitoring interface
SEL1400 5 A 8x5 A 6EP4437-7EB00-3DX0 SITOP SEL1400 5 A Selectivity module 8-channel with limiting characteristic Input: 24 V DC/40 A Output: 24 V DC/8x 5 A Threshold adjustable 1-5 A With monitoring interface
SEL1400 10 A 8x10 A 6EP4438-7EB00-3DX0 SITOP SEL1400 10 A Selectivity module 8-channel with limiting characteristic Input: 24 V DC/60 A output: 24 V DC/8x 10 A Threshold adjustable 2-10 A with monitoring interface



Buffer Modules

Part Number Article Number Description
PSE201U 6EP1961-3BA01 SITOP PSE201U buffer module Buffer time 100 ms to 10 s Depending on load current
BUF1200 6EP4231-7HB00-0AX0 SITOP BUF1200 buffer module Buffer time 300 ms at 40 A Buffer t. depends on load current DC input 24 V



Inrush Current Limiters

Part Number Article Number Description
Inrush current limiter 6EP1967-2AA00 SITOP Switch on current limiter Ballast unit for SITOP Power supplies input: 100-480 V AC, 10 A max output: 100-480 V AC, 10 A max
Inrush current limiter LOGO! ICL230 6EP4683-6LB00-0AY0 LOGO! ICL230 Inrush current limiter Input: 100-240 V AC Output: 100-240 V AC/5 A



DOCUMENTS

SITOP Power Supply BROCHURE

SITOP Selectivity Modules BROCHURE

SITOP Redundancy Modules BROCHURE
