Solutions for buffering 24 V in the automation

Siemens SITOP DC UPS modules is a reliable 24-V supply even when the power fails. It is an important component of optimal, all-around protection. The maintenance-free DC UPSs with capacitor technology deliver reliable 24 V DC for up to a period of minutes, whereas the DC UPSs with battery modules ensure reliable 24 V DC for up to a period of hours

FEATURES

  • Buffering for periods up to several minutes depending on the load current and DC UPS configuration
  • SITOP UPS500S 24 V/15 A standard rail units, energy storage can be combined with up to 3 UPS501S expansion modules
  • UPS500P IP65 version for use outside the control cabinet
  • Totally maintenance-free double-layer capacitors
  • Short charging times for quick recovery of backup readiness
  • Long service life eliminates the need to replace batteries: After 8 years, the ultracapacitors still have 80% of rated capacity at 50 °C ambient temperature
  • No ventilation of the mounting location required
  • Diagnostics via signalling contacts and USB
  • USB interface for PC communication
  • Easy PC integration with software tool

ORDERING INFORMATION

DC UPS with capacitors

Part Number Article Number Description
UPS500S 15A/2.5kWs 6EP1933-2EC41 SITOP UPS500S Maintenance free Uninterruptible Power supply With USB interface Basic device 2.5 kWs input: 24 V DC output: DC 24 V/15 A Degree of protection IP20
UPS500S 15A/5kWs 6EP1933-2EC51 SITOP UPS500S Maintenance free Uninterruptible Power supply With USB interface Basic device 5 kWs input: 24 V DC output: DC 24 V/15 A Degree of protection IP20
UPS500P 7A/5kWs 6EP1933-2NC01 ********** spare part ********* SITOP UPS500P maintenance-free uninterruptible power supply with USB interface basic device 5 kWs input: 24 V DC output: 24 V DC/7 A degree of protection IP65
UPS500P 7A/10kWs 6EP1933-2NC11 ********** spare part ********* SITOP UPS500P maintenance-free uninterruptible power supply with USB interface basic device 10 kWs input: 24 V DC output: 24 V DC/7 A degree of protection IP65
UPS501S expansion module 6EP1935-5PG01 SITOP UPS501S Expansion module 5 kWs for UPS500S (2.5 kWs, (5 kWs, Degree of protection IP20

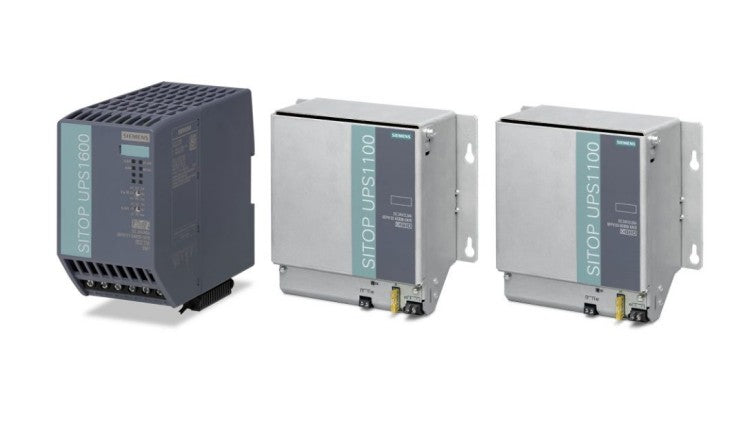

DC UPS with battery modules

Part Number Article Number Description
UPS1600 24V/10A; interface: none, USB or PROFINET
6EP4134-3AB00-0AY0 SITOP UPS1600 10 A Uninterrupted Power supply input: 24 V DC output: DC 24 V/10 A
6EP4134-3AB00-1AY0 SITOP UPS1600 10 A USB Uninterrupted Power supply with USB interface input: 24 V DC output: DC 24 V/10 A
6EP4134-3AB00-2AY0 SITOP UPS1600 10 A Ethernet/ PROFINET Uninterrupted Power supply with Ethernet/ PROFINET interface / OPC UA Server / Web server input: 24 V DC Output: 24 V DC/10 A
UPS1600 24V/20A; interface: none, USB or PROFINET
6EP4136-3AB00-0AY0 SITOP UPS1600 20 A Uninterrupted Power supply input: 24 V DC output: 24 V DC/20 A
6EP4136-3AB00-1AY0 SITOP UPS1600 20 A USB Uninterrupted Power supply with USB interface input: 24 V DC output: 24 V DC/20 A
6EP4136-3AB00-2AY0 SITOP UPS1600 20 A Ethernet/ PROFINET Uninterrupted power supply with Ethernet / PROFINET interface / OPC UA Server / Web server input: 24 V DC output: 24 V DC/20 A
UPS1600 24V/40A; interface: none, USB or PROFINET
6EP4137-3AB00-0AY0 SITOP UPS1600 40 A Uninterrupted Power supply input: 24 V DC output: 24 V DC/40 A
6EP4137-3AB00-1AY0 SITOP UPS1600 40 A USB Uninterrupted Power supply with USB interface input: 24 V DC output: 24 V DC/40 A
6EP4137-3AB00-2AY0 SITOP UPS1600 40 A Ethernet/ PROFINET Uninterrupted Power supply with Ethernet/ PROFINET interface / OPC UA Server / Web server input: 24 V DC output: 24 V DC/40 A
UPS1100 24V/1.2Ah 6EP4131-0GB00-0AY0 SITOP UPS1100 Battery module with warning not closed Lead batteries for SITOP DC-USV Modules; DC 24 V 1.2 Ah
UPS1100 24V/3.2Ah 6EP4133-0GB00-0AY0 SITOP UPS1100 Battery module with warning not closed Lead batteries for SITOP DC-USV Modules; DC 24 V 3.2 Ah
UPS1100 24V/5Ah (LiFePo) 6EP4133-0JB00-0AY0 SITOP UPS1100 Battery module with warning not closed Lithium iron phophate batteries for SITOP DC-USV modules; DC 24 V 5 Ah
UPS1100 24V/7Ah 6EP4134-0GB00-0AY0 SITOP UPS1100 Battery module with warning not closed Lead batteries for SITOP DC-USV Modules; DC 24 V 7 Ah
UPS1100 24V/12Ah 6EP4135-0GB00-0AY0 SITOP UPS1100 Battery module with warning not closed Lead batteries for SITOP DC-USV Modules; DC 24 V 12 Ah
UPS1100 24V/2.5Ah (pure lead battery) 6EP4132-0GB00-0AY0 SITOP UPS1100 Battery module with warning not closed Lead batteries for SITOP DC-USV Modules; DC 24 V 2.5 Ah
