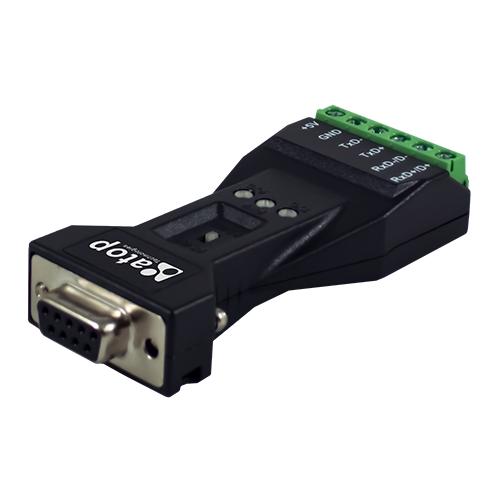

SS100 Series
Compact plug-on RS-232 to RS-485/422 media converter
ATOP SS100 is a Compact plug-on RS-232 to RS-485/422 media converter
FEATURES
- Maximum Communication Speed: 500Kbps
- Industrial Grade Temperature: -40~85°C
- ESD Protection (IEC 61000-4-2: ESD level 3 protection)
- External power not required (When RTS/DTR signal line is enabled)
- Compact size
- Hardware-based Auto Toggling
- RS422/RS485 mode selectable by external switch
- Built-in 120Ω termination resistors, selected by external switch
- 3kV isolation
- LED port power indicator
ORDERING INFORMATION
| Part Number | Article Number | Description |
|---|---|---|
| SS100 | 1P1SS100000001G | RS232 DB9, RS422/485 TB-6, Isolation Voltage N/A, Power connector TB-2 |
| SS100-SiS-R | 1P1SS100000002G | RS232 DB9, RS422/485 TB-6, Isolation Voltage 3000 VDC at RS232, Power connector TB-2 |
| SS100-J | 1P1SS100000004G | RS232 DB9, RS422/485 TB-4, Isolation Voltage N/A, Power connector DC-Jack |
