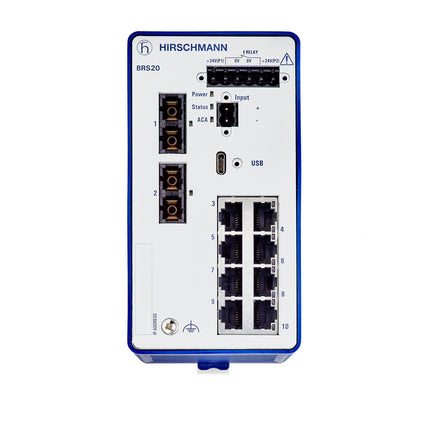

BRS20-8TX/2FX-2A

Managed Industrial Switch for DIN Rail, fanless design Fast Ethernet Type

Ports: 8 x 10/100BASE-TX RJ45, 2 x 100BASE-FX MM-SC fiber uplinks
Interfaces: USB-C management, 6-pin power terminal, 2-pin digital input
Cable Distance: Up to 100 m (TP), 5 km (MM fiber)
Power: Dual 12-24V DC, 8W
Switching: VLAN (802.1Q), IGMP Snooping, QoS/CoS, TSN 802.1Qbv, Jumbo Frames
Redundancy: HIPER-Ring, MRP, RSTP/MSTP, Link Aggregation (LACP)
Management: HTTPS, SNMPv1/2/3, SSHv2, LLDP, SFTP/SCP, OPC-UA, IPv6
Diagnostics: RMON, sFlow, Syslog, Port Mirroring, Loop Protection, Cable Test
Configuration: CLI, HTML5, HiDiscovery, ACA21/22, USB-C management
Security: 802.1X, RADIUS/TACACS+, ACLs, DHCP Snooping, MACsec, Secure Boot
Time Sync: PTPv2, SNTP, IEEE 802.1AS-2020
Industrial Protocols: EtherNet/IP, Modbus TCP, PROFINET, IEC 61850
Dimensions: 73 x 138 x 115 mm, 500 g
