CL2300E Series

Request a quote

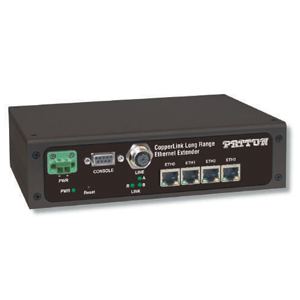

Industrial Grade, Long Range-Bonding Wire-Bonding Ethernet Extender

Patton CL2300E Series is a Industrial Grade, Long Range-Bonding Wire-Bonding Ethernet Extender with up to 10.4 Km

FEATURES

  • Bandwidth Rich
  • Operates Over Twisted Pair
  • Plug and Play
  • Multiple Line Rates Supported
  • Transparent LAN Bridging

ORDERING INFORMATION

Part Number Description
CL2301E/4ETH/DC CopperLink 1 Pair (2-Wire) Light Industrial Ethernet Extender; -40 to 85°C; RJ45 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC
CL2301E/CC/4ETH/DC CopperLink 1 Pair (2-Wire) Light Industrial Ethernet Extender; -40 to 85°C; Corrosion Protection; RJ45 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC
CL2301E/CC/4ETH/DC-2PK CopperLink 1 Pair (2-Wire) Light Industrial Ethernet Extender Kit; -40 to 85°C; Corrosion Protection; RJ45 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC
CL2301E/M12F/CC/4ETH/DC CopperLink 1 Pair (2-Wire) Light Industrial Ethernet Extender; -40 to 85°C; Corrosion Protection; M12 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC
CL2301E/M12F/CC/4ETH/DC-2PK CopperLink 1 Pair (2-Wire) Light Industrial Ethernet Extender Kit; -40 to 85°C; Corrosion Protection; M12 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC
CL2302E/4ETH/DC CopperLink 2 Pair (4-Wire) Light Industrial Ethernet Extender; -40 to 85°C; RJ45 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC
CL2302E/CC/4ETH/DC CopperLink 2 Pair (4-Wire) Light Industrial Ethernet Extender; -40 to 85°C; Corrosion Protection; RJ45 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC
CL2302E/CC/4ETH/DC-2PK CopperLink 2 Pair (4-Wire) Light Industrial Ethernet Extender Kit; -40 to 85°C; Corrosion Protection; RJ45 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC
CL2302E/M12F/CC/4ETH/DC CopperLink 2 Pair (4-Wire) Light Industrial Ethernet Extender Kit; -40 to 85°C; Corrosion Protection; M12 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC
CL2302E/M12F/CC/4ETH/DC-2PK CopperLink 2 Pair (4-Wire) Light Industrial Ethernet Extender Kit; -40 to 85°C; Corrosion Protection; M12 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC
CL2304E/4ETH/DC CopperLink 4 Pair (8-Wire) Light Industrial Ethernet Extender; -40 to 85°C; RJ45 Line (8-position); 4 x 10/100BaseTX; 12-48VDC
CL2304E/CC/4ETH/DC CopperLink 4 Pair (8-Wire) Light Industrial Ethernet Extender; -40 to 85°C; Corrosion Protection; RJ45 Line (8-position); 4 x 10/100BaseTX; 12-48VDC



DOCUMENTS

CL2300E DATASHEET
