ATOP
EHG7620 Series

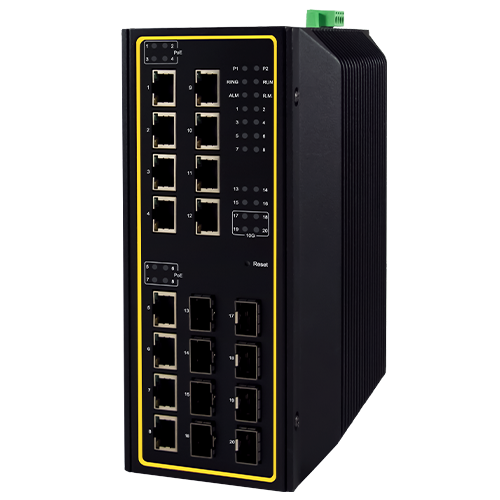

20-Port High-Bandwidth Industrial Managed Layer-3 Gigabit PoE Switch
ATOP EHG7620 Series is a 20-Port High-Bandwidth Industrial Managed Layer-3 Gigabit PoE Switch with up to 16 10/100/1000 RJ45 ports or 100/1000 BASE-X SFP slots
FEATURES
- Up to 16 10/100/1000 RJ45 ports or 100/1000 BASE-X SFP slots. Plus 4 dedicated 1/10G Uplink SFP slots
- Up to 8x 802.3af/ 802.3at PoE/PoE+ Power over Ethernet ports, with
- maximum 30W PoE power per port and up to 240W power budget.
- Powerful Layer-3 Switching, supporting IPv4 Static, RIPv1/v2 and OSPFv2
- Redundancy through ITU-T G.8032 ERPS Ring, RSTP, STP, MRP (Client), compatible rings and compatible chains.
- UL 62368-1:2014, CE/FCC, NEMA TS-2 certified for traffic control
- Wide temperature operations, from -40°C to 70°C
- IEEE 1588v2 Precision Time Protocol Hardware-Based End-to-End TC
- Wide temperature operations, from -40°C to 70°C
ORDERING INFORMATION
| Part Number | Article Number | Description |
|---|---|---|
| EHG7620-410GSFP | 1P1EHG76200001G | 20-port Managed switch with 16 x RJ45, 4 x 10G SFP slots |
| EHG7620-4SFP-410GSFP | 1P1EHG76200004G | 20-port Managed switch with 12 x RJ45, 4 x 100/1000 SFP slots, 4 x 10G SFP slots |
| EHG7620-8SFP-410GSFP | 1P1EHG76200007G | 20-port Managed switch with 8 x RJ45, 8 x 100/1000 SFP slots, 4 x 10G SFP slots |
| EHG7620-12SFP-410GSFP | 1P1EHG76200008G | 20-port Managed switch with 4 x RJ45, 12 x 100/1000 SFP slots, 4 x 10G SFP slots |
| EHG7620-16SFP-410GSFP | 1P1EHG7620000AG | 20-port Managed switch with 16 x 100/1000 SFP slots, 4 x 10G SFP slots |
| EHG7620-4PoE-410GSFP | 1P1EHG76200002G | 20-port Managed PoE switch with 12 x RJ45, 4 x RJ45 PoE, 4 x 10G SFP slots |
| EHG7620-4PoE-4SFP-410GSFP | 1P1EHG76200005G | 20-port Managed PoE switch with 8 x RJ45, 4 x RJ45 PoE, 4 x 100/1000 SFP slots, 4 x 10G SFP slots |
| EHG7620-4PoE-12SFP-410GSFP | 1P1EHG76200009G | 20-port Managed PoE switch with 4 x RJ45 PoE, 12 x 100/1000 SFP slots, 4 x 10G SFP slots |
| EHG7620-8PoE-410GSFP | 1P1EHG76200003G | 20-port Managed PoE switch with 8 x RJ45, 8 x RJ45 PoE, 4 x 10G SFP slots |
| EHG7620-8PoE-4SFP-410GSFP | 1P1EHG76200006G | 20-port Managed PoE switch with 4 x RJ45, 8 x RJ45 PoE, 4 x 100/1000 SFP slots, 4 x 10G SFP slots |
