ATOP

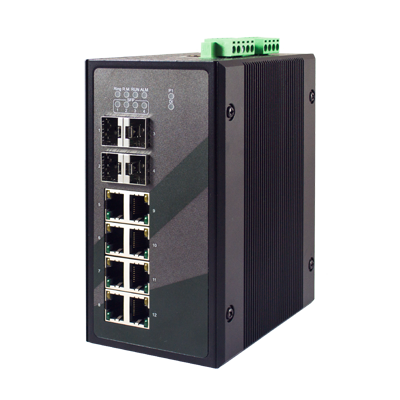

EHG9512 Series
12-Port IEC 61850-3 certified Managed Gigabit switch
ATOP EHG9512 Series is a 12-Port IEC 61850-3 certified Managed Gigabit switch with up to 6 or 8 10/100/1000 BASE-T(X) ports and 2 or 4 1000 BASE-X SFP ports
FEATURES
- IEC61850-3 Certified, KEMA-KEUR
- Up to 6 or 8 10/100/1000 BASE-T(X) ports and 2 or 4 1000 BASE-X SFP ports
- IEEE1588v2 Precision Time Protocol support, with nanosecond-accurate
- Hardware-based E2E Transparent clock and Software Boundary Clock
- ERPS and Compatible Ring (recovery time < 20ms @ 40 switches),
- STP/RSTP/MSTP/MRP (Client) for network redundancy
- Remote management over Web browser, Telnet, Serial console, Utility
- Security features based on IEC62443-4-2
ORDERING INFORMATION
| Part Number | Article Number | Description |
|---|---|---|
| EHG9512-4SFP | 1P1EHG95120001G | 12-port Managed switch with 8 x RJ45, 4 x SFP |
| EHG9512-4SFP-HV | 1P1EHG95120002G | 12-port Managed switch with 8 x RJ45, 4 x SFP |
| EHG9512-4SFP-AC | 1P1EHG95120003G | 12-port Managed switch with 8 x RJ45, 4 x SFP |
