Hirschmann

MS30-1602SAAP

Request a quote

943435008 - MICE 5 slot backplane Managed GE/FE Switch

MS30 Series products are now obsolete. There is not a direct replacement offered but we recommend Hirschmann MSP30/MSP40 Series as the most suitable alternative product

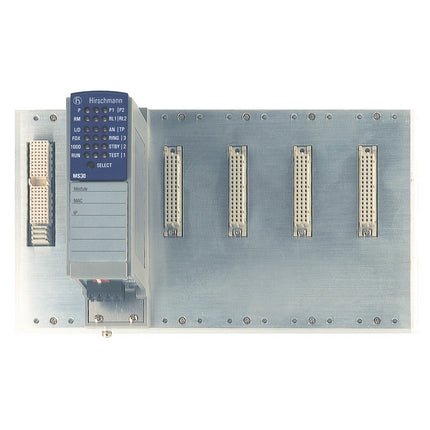

Hirschmann MS30-1602SAAP – 943435008 MICE 5 slot backplane Managed GE/FE switch. 2 GE uplink ports and 16 FE ports max. Professional software

The MS30-1602SAAP is a modular switch with 3 module slots offering 1 x Gigabit module (2 ports) and 4 x FE modules for up to 16 Fast Ethernet (100Base) ports. Using MICE modules (MM2 and MM3 series) a wide choice of FE port options can be selected. Use module MM4-2TX/SFP for Gigabit module requirement.

PRODUCT FEATURES

• Compact DIN-Rail mounting backplane design
• All switches support 2 Gigabit uplink ports and up to 16 Fast Ethernet ports
• Backplane can be expanded using MB-2T adaptor to give 2 extra module slots, to increase capacity up to 24 FE ports
• Select appropriate FE modules to give required number of 10/100Base TX RJ45 or 100 Base FX ports (MM or SM). To be ordered separately
• Select appropriate Gigabit module for uplink and Gigabit ring applications (Left side slot only)
• SFPs required for Gigabit fiber uplinks (to be ordered separately)
• Hirschmann ‘Hiper Ring’ redundancy supported
• Wide range of industrial approvals and certifications
• Professional (P) software
• 5 year Warranty

ORDERING INFORMATION

Part Number Article Number Description
MS30-1602SAAP 943 435-009 MICE 5 slot backplane Managed GE/FE switch. 2 GE uplink ports and 16 FE ports max. Professional software



DOCUMENTS

MS30-1602SAAP DATASHEET
