ATOP

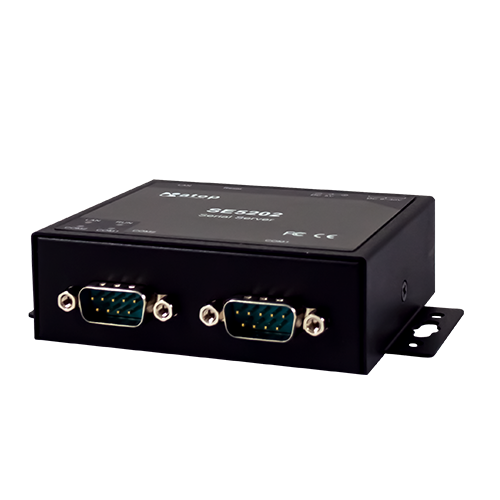

SE5202 Series
Compact 2-Port Industrial Serial Device Server, Field-Mount
ATOP SE5202 Series is a compact 2-Port Industrial Serial Device Server with 2 x software-selectable Serial Port and 1 x RJ45 Port or SFP Slot
FEATURES
- 2 x software-selectable RS-232/485/422 port
- 1 x 10/100Mbps RJ45 Fast Ethernet port or 100Mbps SFP Slot
- Supports TCP server/client, UDP, Virtual COM and Tunneling modes
- Configuration via Web Server page, Telnet Console, and Windows Utility
- Integrated SNMPv1/v2c/v3, HTTPS, Telnet and SSH configuration
- Upgradable firmware via Ethernet from a remote-PC
- Rugged metal casing; industrial EMC protection
- Redundant dual DC power inputs for non-stop operation
- Optional DIN-Rail mounting
ORDERING INFORMATION
| Part Number | Article Number | Description |
|---|---|---|
| SE5202-DB | 1P1SE520200001G | 1 x 10/100 RJ45, 2 x D-Sub 9 |
| SE5202-TB | 1P1SE520200002G | 1 x 10/100 RJ45, 2 x 5-pin Terminal Block |
| SE5202-Sis | 1P1SE520200003G | 1 x 10/100 RJ45, 2 x 5-pin Terminal Block, 3kV Serial Isolation |
| SE5202-SFP-DB | 1P1SE520200004G | 1 x 100Mbps SFP, 2 x D-Sub 9 |
| SE5202-SFP-TB | 1P1SE520200005G | 1 x 100Mbps SFP, 2 x 5-pinTerminal Block |
