SS100 Series
SS100 Series

ATOP

SS100 Series

Request a quote

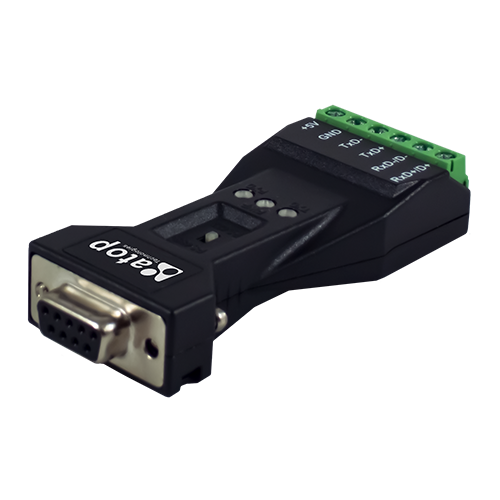

Compact plug-on RS-232 to RS-485/422 media converter

ATOP SS100 is a Compact plug-on RS-232 to RS-485/422 media converter

FEATURES

  • Maximum Communication Speed: 500Kbps
  • Industrial Grade Temperature: -40~85°C
  • ESD Protection (IEC 61000-4-2: ESD level 3 protection)
  • External power not required (When RTS/DTR signal line is enabled)
  • Compact size
  • Hardware-based Auto Toggling
  • RS422/RS485 mode selectable by external switch
  • Built-in 120Ω termination resistors, selected by external switch
  • 3kV isolation
  • LED port power indicator

ORDERING INFORMATION

Part Number Article Number Description
SS100 1P1SS100000001G RS232 DB9, RS422/485 TB-6, Isolation Voltage N/A, Power connector TB-2
SS100-SiS-R 1P1SS100000002G RS232 DB9, RS422/485 TB-6, Isolation Voltage 3000 VDC at RS232, Power connector TB-2
SS100-J 1P1SS100000004G RS232 DB9, RS422/485 TB-4, Isolation Voltage N/A, Power connector DC-Jack



DOCUMENTS

SS100 BROCHURE
