Hirschmann
BRS20 Series
Request a quoteManaged Fast Ethernet Switches
Hirschmann BRS20 is a series of Managed Fast Ethernet switches with up to 24 ports.
FEATURES
- Advanced Security Features : Including wire-speed access control lists and automatic denial-of-service prevention
- High Port Density: Up to 24 ports within a compact housing to connect a growing number of network devices with SFP or copper uplink port options available.
- TSN support for Precise and Data Transmission: Simultaneously support multiple services on the network through TSN technology
- PoE Capability : Support up to 240 W across 8 PoE/PoE+ ports without load sharing to ensure high power output
- Future-Proof Design: Increased bandwidth and speed capabilities up to 2.5 Gigabits through adjustable SFPs without changing the appliance
- Standard range part numbers offers HIOS Layer 2 standard software. HIOS Layer 2 Advanced software also available
- Available in Extended Operating Temperature and Conformal Coated versions for more arduous operating environments
- Available with additional Industry sector approvals such as cUL 61010-2-201,ATEX, IECEx T, DNVGL, IEC 61850-3
- For all non-standard requirements please see the Configurator Tool for details and part numbers
ORDERING INFORMATION
| Part Number | Article Number | Description |
|---|---|---|
|
BRS20-4TX |
942 170-001 | 4 Ports in total: 4x 10/100BASE TX / RJ45 ports |
|
BRS20-4TX-EEC |
942 170-011 | 4 Ports in total: 4x 10/100BASE TX / RJ45 ports |
|
BRS-4TX/2FX |
942 170-003 | 6 Ports in total: 4x 10/100BASE TX / RJ45; 2x 100BASE-FX ports, MM-SC |
|
BRS20-4TX/2FX-EEC |
942 170-013 | 6 Ports in total: 4x 10/100BASE TX / RJ45; 2x 100BASE-FX ports, MM-SC |
|
BRS20-4TX/2FX-SM |
942 170-005 | 6 Ports in total: 4x 10/100BASE TX / RJ45; 2x 100BASE-FX ports, MM-SC |
|
BRS20-4TX/2FX-SM-EEC |
942 170-015 | 6 Ports in total: 4x 10/100BASE TX / RJ45; 2x 100BASE-FX ports, SM-SC |
|
BRS20-8TX |
942 170-002 | 8 Ports in total: 8x 10/100BASE TX / RJ45 ports |
|
BRS20-8TX-EEC |
942 170-012 | 8 Ports in total: 8x 10/100BASE TX / RJ45 ports |
|
BRS20-8TX/2FX |
942 170-004 | 10 Ports in total: 8x 10/100BASE TX / RJ45; 2x 100BASE-FX ports, MM-SC |
|
BRS20-8TX/2FX-EEC |
942 170-014 | 10 Ports in total: 8x 10/100BASE TX / RJ45; 2x 100BASE-FX ports, MM-SC |
|
BRS20-8TX/2FX-SM |
942 170-006 | 10 Ports in total: 8x 10/100BASE TX / RJ45; 2x 100BASE-FX ports , SM-SC |
|
BRS20-8TX/2FX-SM-EEC |
942 170-016 | 10 Ports in total: 8x 10/100BASE TX / RJ45; 2x 100BASE-FX ports, SM-SC |
|

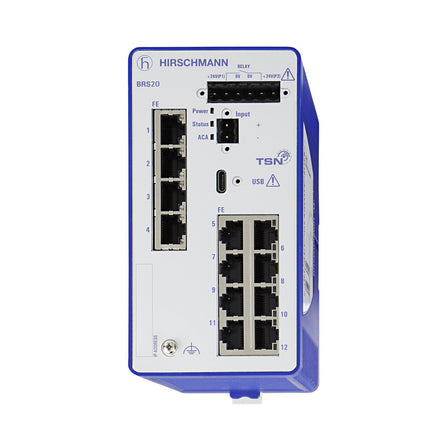

BRS20-12TX |
942 170-073 |
12-port Managed DIN Rail switch, 12x 10/100BASE TX / RJ45 ports |
|
BRS20-12TX-EEC |
942 170-074 |
12-port Managed DIN Rail switch, 12x 10/100BASE TX / RJ45 ports |
|
BRS20-16TX |
942 170-053 |
16-port Managed DIN Rail switch, 16x 10/100BASE TX / RJ45 ports |
|
BRS20-16TX-EEC |
942 170-054 |
16-port Managed DIN Rail switch, 16x 10/100BASE TX / RJ45 ports |
|
BRS20-16TX/4SFP |
942 170-055 |
20-port Managed DIN Rail switch, 16x 10/100BASE TX / RJ45; 4x 100Mbit/s SFP ports |
|
BRS20-16TX/4SFP-EEC |
942 170-056 |
20-port Managed DIN Rail switch, 16x 10/100BASE TX / RJ45; 4x 100Mbit/s SFP ports |
|
BRS20-20TX |
942 170-081 |
20-port Managed DIN-Rail switch, 20x 10/100BASE TX / RJ45 ports |
|
BRS20-20TX-EEC |
942 170-082 |
20-port Managed DIN-Rail switch, 20x 10/100BASE TX / RJ45 ports |
|
BRS20-20TX/4SFP |
942 170-057 |
24-port Managed DIN Rail switch, 20x 10/100BASE TX / RJ45; 4x 100Mbit/s SFP ports |
|
BRS20-24TX |
942 170-083 |
24-port Managed DIN Rail switch, 24x 10/100BASE TX / RJ45 ports |
|
BRS20-24TX-EEC |
942 170-084 |
24-port Managed DIN Rail switch, 24x 10/100BASE TX / RJ45 ports |
