EL100-4U Series

Request a quote

Unmanaged Ethernet to Fiber Optic Switch

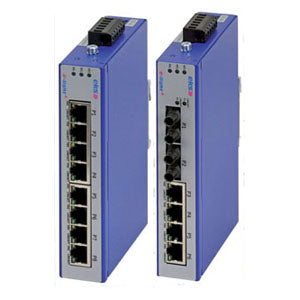

EKS-ENGEL EL100-4U Series is a 5-10-port Unmanaged Ethernet to Fiber Optic Switch. Since they are only 3 cm in width they do not need much space. In case of extremely flat installation space the DIN rail clip can be fixed at the side. Apart from that, they can be used in 19’’ racks by using an additional cover at the front. The following switches are available: 8 TX, 8TX/2FX, 4TX/2FX, 4TX/1FX, 4TX/3FX and 4TX/4FX. They can be used with singlemode (SM) or multimode (MM) fiber optic. The singlemode switches are suitable for distances of up to 30 km.

ORDERING INFORMATION

Click part number below for ordering information

Part Number Article Number Description
EL100-4U/4x10/100TX-1x100FX-MM-SC 0500401000033EV00-00 EL100-4U/4x10/100TX-1x100FX-MM-SC Unm. IE Switch Converter (Extended)
EL100-4U/4x10/100TX-1x100FX-MM-ST 0500401000031EV00-00 EL100-4U/4x10/100TX-1x100FX-MM-ST Unm. IE Switch Converter (Extended)
EL100-4U/4x10/100TX-1x100FX-SM-SC 0500401000053EV00-00 EL100-4U/4x10/100TX-1x100FX-SM-SC Unm. IE Switch Converter (Extended)
EL100-4U/4x10/100TX-1x100FX-SM-ST 0500401000051EV00-00 EL100-4U/4x10/100TX-1x100FX-SM-ST Unm. IE Switch Converter (Extended)
EL100-4U/4x10/100TX-2x100FX-MM-SC 0500401003333EV00-00 EL100-4U/4x10/100TX-2x100FX-MM-SC Unm. IE Switch Converter (Extended)
EL100-4U/4x10/100TX-2x100FX-MM-ST 0500401003131EV00-00 EL100-4U/4x10/100TX-2x100FX-MM-ST Unm. IE Switch Converter (Extended)
EL100-4U/4x10/100TX-2x100FX-SM-SC 0500401005353EV00-00 EL100-4U/4x10/100TX-2x100FX-SM-SC Unm. IE Switch Converter (Extended)
EL100-4U/4x10/100TX-2x100FX-SM-ST 0500401005151EV00-00 EL100-4U/4x10/100TX-2x100FX-SM-ST Unm. IE Switch Converter (Extended)
EL100-4U/4x10/100TX-3x100FX-MM-SC 0500401333333EV00-00 EL100-4U/4x10/100TX-3x100FX-MM-SC Unm. IE Switch Converter (Extended)
EL100-4U/4x10/100TX-3x100FX-MM-ST 0500401313131EV00-00 EL100-4U/4x10/100TX-3x100FX-MM-ST Unm. IE Switch Converter (Extended)
EL100-4U/4x10/100TX-3x100FX-SM-SC 0500401535353EV00-00 EL100-4U/4x10/100TX-3x100FX-SM-SCUnm. IE Switch Converter (Extended)
EL100-4U/4x10/100TX-4x100FX-MM-SC 050040133333333EV00-00 EL100-4U/4x10/100TX-4x100FX-MM-SC Unm. IE Switch Converter (Extended)
EL100-4U/4x10/100TX-4x100FX-MM-ST 050040131313131EV00-00 EL100-4U/4x10/100TX-4x100FX-MM-ST Unm. IE Switch Converter (Extended)
EL100-4U/4x10/100TX-4x100FX-SM-SC 050040153535353EV00-00 EL100-4U/4x10/100TX-4x100FX-SM-SC Unm. IE Switch Converter (Extended)
EL100-4U/4x10/100TX-4x100FX-SM-ST 050040151515151EV00-00 EL100-4U/4x10/100TX-4x100FX-SM-ST Unm. IE Switch Converter (Extended)
EL100-4U/5x10/100TX 0500501000000EV00-00 EL100-4U/5x10/100TX Unm. IE Switch (Extended)
EL100-4U/8x10/100TX 0500801000000EV00-00 EL100-4U/8x10/100TX Unm. IE Switch (Extended)
EL100-4U/8x10/100TX-1x100FX-MM-SC 0500801000033EV00-00 EL100-4U/8x10/100TX-1x100FX-MM-SC Unm. IE Switch Converter (Extended)
EL100-4U/8x10/100TX-1x100FX-MM-ST 0500801000031EV00-00 EL100-4U/8x10/100TX-1x100FX-MM-ST Unm. IE Switch Converter (Extended)
EL100-4U/8x10/100TX-1x100FX-SM-SC 0500801000053EV00-00 EL100-4U/8x10/100TX-1x100FX-SM-SC Unm. IE Switch Converter (Extended)
EL100-4U/8x10/100TX-1x100FX-SM-ST 0500801000051EV00-00 EL100-4U/8x10/100TX-1x100FX-SM-ST Unm. IE Switch Converter (Extended)
EL100-4U/8x10/100TX-2x100FX-MM-SC 0500801003333EV00-00 EL100-4U/8x10/100TX-2x100FX-MM-SC Unm. IE Switch Converter (Extended)
EL100-4U/8x10/100TX-2x100FX-MM-ST 0500801003131EV00-00 EL100-4U/8x10/100TX-2x100FX-MM-ST Unm. IE Switch Converter (Extended)
EL100-4U/8x10/100TX-2x100FX-SM-SC 0500801005353EV00-00 EL100-4U/8x10/100TX-2x100FX-SM-SC Unm. IE Switch Converter (Extended)
EL100-4U/8x10/100TX-2x100FX-SM-ST 0500801005151EV00-00 EL100-4U/8x10/100TX-2x100FX-SM-ST Unm. IE Switch Converter (Extended)



DOCUMENTS

EL100-4U BROCHURE
