Hirschmann
BOBCAT Series
Next Generation Compact Managed Switches up to 24-ports
Hirschmann BOBCAT Series is a range of Next Generation Compact Managed Switches with Ethernet speeds up to 2.5 Gigabit
The BobCat range is available in a number of different versions:
- BRS20 Series of Fast Ethernet switches with built-in fiber-optic ports and SFP port options
- BRS30 series of Fast Ethernet switches with Gigabit Uplink SFP port options
- BRS40 series All Gigabit Ethernet switches with SFP Uplink ports
- BRS50 series offers All Gigabit ports with SFP Uplink ports and the option to run the Uplink ports at 2.5Gigabit speed for increased throughput
- BRS22 series has same features as the BRS20 series but offers PoE capability on all non-Uplink RJ45 ports
- BRS32 series has same features as the BRS30 series but offers PoE capability on all non-Uplink RJ45 ports
- BRS42 series has same features as the BRS40 series but offers PoE capability on all non-Uplink RJ45 ports
- BRS52 series has same features as the BRS50 series but offers PoE capability on all non-Uplink RJ45 ports
FEATURES
- Advanced Security Features : Including wire-speed access control lists and automatic denial-of-service prevention
- High Port Density: Up to 24 ports within a compact housing to connect a growing number of network devices with SFP or copper uplink port options available.
- TSN support for Precise and Data Transmission: Simultaneously support multiple services on the network through TSN technology
- PoE Capability : Support up to 240 W across 8 PoE/PoE+ ports without load sharing to ensure high power output
- Future-Proof Design: Increased bandwidth and speed capabilities up to 2.5 Gigabits through adjustable SFPs without changing the appliance
- Standard range part numbers offers HIOS Layer 2 standard software. HIOS Layer 2 Advanced software also available
- Available in Extended Operating Temperature and Conformal Coated versions for more arduous operating environments
- Available with additional Industry sector approvals such as cUL 61010-2-201,ATEX, IECEx T, DNVGL, IEC 61850-3
- For all non-standard requirements please see the Configurator Tool for details and part numbers
ORDERING INFORMATION
Click the part number below for ordering information
BRS20
| Part Number | Article Number | Description |
|---|---|---|
|
BRS20-4TX |
942 170-001 | 4 Ports in total: 4x 10/100BASE TX / RJ45 ports |
|
BRS20-4TX-EEC |
942 170-011 | 4 Ports in total: 4x 10/100BASE TX / RJ45 ports |
|
BRS-4TX/2FX |
942 170-003 | 6 Ports in total: 4x 10/100BASE TX / RJ45; 2x 100BASE-FX ports, MM-SC |
|
BRS20-4TX/2FX-EEC |
942 170-013 | 6 Ports in total: 4x 10/100BASE TX / RJ45; 2x 100BASE-FX ports, MM-SC |
|
BRS20-4TX/2FX-SM |
942 170-005 | 6 Ports in total: 4x 10/100BASE TX / RJ45; 2x 100BASE-FX ports, MM-SC |
|
BRS20-4TX/2FX-SM-EEC |
942 170-015 | 6 Ports in total: 4x 10/100BASE TX / RJ45; 2x 100BASE-FX ports, SM-SC |
|
BRS20-8TX |
942 170-002 | 8 Ports in total: 8x 10/100BASE TX / RJ45 ports |
|
BRS20-8TX-EEC |
942 170-012 | 8 Ports in total: 8x 10/100BASE TX / RJ45 ports |
|
BRS20-8TX/2FX |
942 170-004 | 10 Ports in total: 8x 10/100BASE TX / RJ45; 2x 100BASE-FX ports, MM-SC |
|
BRS20-8TX/2FX-EEC |
942 170-014 | 10 Ports in total: 8x 10/100BASE TX / RJ45; 2x 100BASE-FX ports, MM-SC |
|
BRS20-8TX/2FX-SM |
942 170-006 | 10 Ports in total: 8x 10/100BASE TX / RJ45; 2x 100BASE-FX ports , SM-SC |
|
BRS20-8TX/2FX-SM-EEC |
942 170-016 | 10 Ports in total: 8x 10/100BASE TX / RJ45; 2x 100BASE-FX ports, SM-SC |
|
BRS20-12TX |
942 170-073 |
12-port Managed DIN Rail switch, 12x 10/100BASE TX / RJ45 ports |
|
BRS20-12TX-EEC |
942 170-074 |
12-port Managed DIN Rail switch, 12x 10/100BASE TX / RJ45 ports |
|
BRS20-16TX |
942 170-053 |
16-port Managed DIN Rail switch, 16x 10/100BASE TX / RJ45 ports |
|
BRS20-16TX-EEC |
942 170-054 |
16-port Managed DIN Rail switch, 16x 10/100BASE TX / RJ45 ports |
|
BRS20-16TX/4SFP |
942 170-055 |
20-port Managed DIN Rail switch, 16x 10/100BASE TX / RJ45; 4x 100Mbit/s SFP ports |
|
BRS20-16TX/4SFP-EEC |
942 170-056 |
20-port Managed DIN Rail switch, 16x 10/100BASE TX / RJ45; 4x 100Mbit/s SFP ports |
|
BRS20-20TX |
942 170-081 |
20-port Managed DIN-Rail switch, 20x 10/100BASE TX / RJ45 ports |
|
BRS20-20TX-EEC |
942 170-082 |
20-port Managed DIN-Rail switch, 20x 10/100BASE TX / RJ45 ports |
|

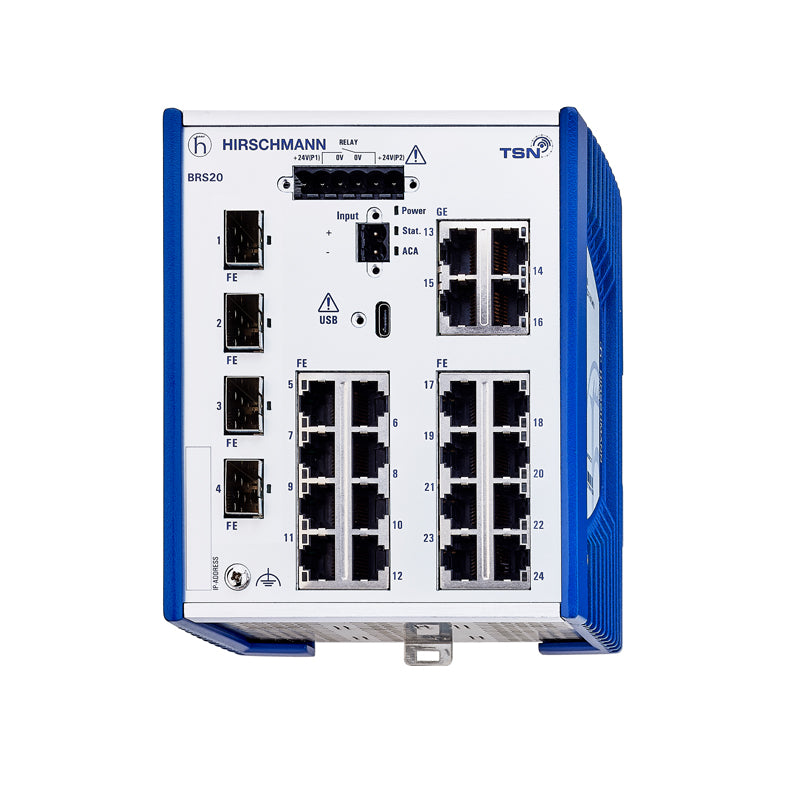

BRS20-20TX/4SFP |
942 170-057 |
24-port Managed DIN Rail switch, 20x 10/100BASE TX / RJ45; 4x 100Mbit/s SFP ports |
|
BRS20-24TX |
942 170-083 |
24-port Managed DIN Rail switch, 24x 10/100BASE TX / RJ45 ports |
|
BRS20-24TX-EEC |
942 170-084 |
24-port Managed DIN Rail switch, 24x 10/100BASE TX / RJ45 ports |
| BRS22-08009999-SPCY99HHSESXX.X.XX | 942 180-999 | 8-port Managed DIN Rail PoE switch, 8x 10/100BASE TX / RJ45 ports |
BRS30
| Part Number | Article Number | Description |
|---|---|---|
| BRS30-8TX/4SFP | 942 170-007 | 12 Ports in total: 8x 10/100BASE TX / RJ45; 4x SFP Slot (100/1000 Mbit/s) |
|
BRS30-8TX/4SFP-EEC |
942 170-017 | 12 Ports in total: 8x 10/100BASE TX / RJ45; 4x SFP Slot (100/1000 Mbit/s) |
|
BRS30-12TX |
942 170-075 |
12-port Managed DIN Rail switch, 8x 10/100BASE TX / RJ45; 4x 10/100/1000BASE TX / RJ45 |
|
BRS30-12TX-EEC |
942 170-076 |
12-port Managed DIN Rail switch, 8x 10/100BASE TX / RJ45; 4x 10/100/1000BASE TX / RJ45 ports |

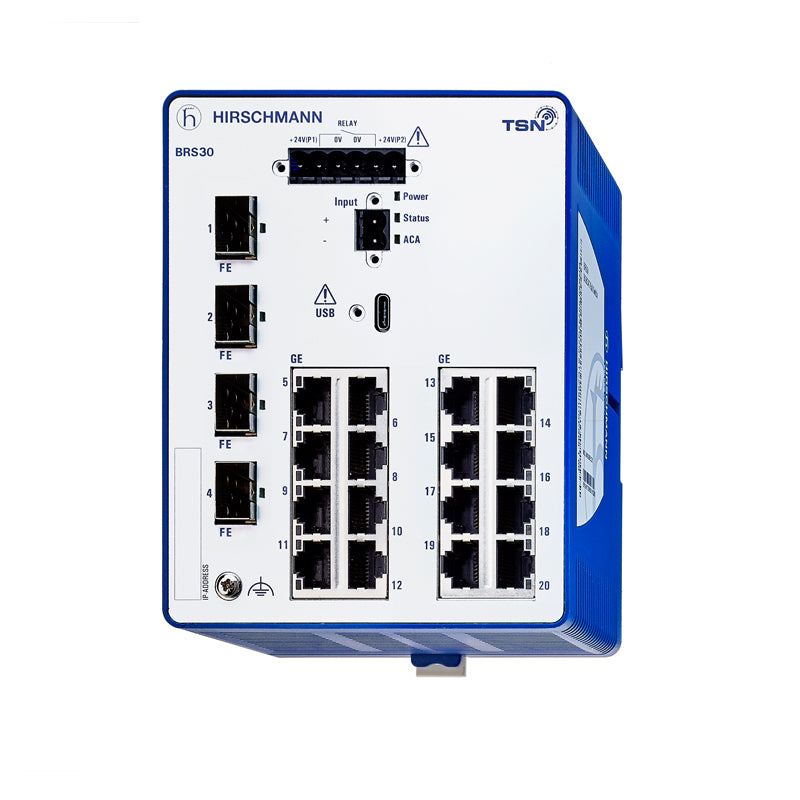

| BRS30-16TX/4SFP | 942 170-059 | 20-port FE/GE Managed Switch with 16TX + 4GE SFP ports |
| BRS30-16TX/4SFP-EEC | 942 170-060 | 20-port FE/GE Managed Switch with 16TX + 4GE SFP ports |
|
BRS30-20TX |
942 170-085 |
20-port Managed DIN Rail switch, 16x 10/100BASE TX / RJ45; 4x 10/100/1000BASE TX / RJ45 ports |
|
BRS30-20TX-EEC |
942 170-086 |
20-port Managed DIN Rail switch, 16x 10/100BASE TX / RJ45; 4x 10/100/1000BASE TX / RJ45 ports |
| BRS30-20TX/4SFP | 942 170-061 | BRS30-20TX/4SFP is a 24-port FE/GE Managed Switch with 20TX + 4GE SFP ports |
| BRS30-20TX/4SFP-EEC | 942 170-062 | Hirschmann BRS30-20TX/4SFP EEC is a 24-port FE/GE Managed Switch with 20TX + 4GE SFP ports |
|
BRS30-24TX |
942 170-087 |
24-port Managed DIN Rail switch, 20x 10/100BASE TX / RJ45; 4x 10/100/1000BASE TX / RJ45 ports |
|
BRS30-24TX-EEC |
942 170-088 |
24-port Managed DIN Rail switch, 20x 10/100BASE TX / RJ45; 4x 10/100/1000BASE TX / RJ45 ports |
|
BRS32-8TX/4SFP |
942 170-048 | 12-port Managed FE/GE PoE switch with 8 x TX PoE+ ports and 4x FE/GE SFP ports |
| BRS32-8TX/4SFP-EEC | 942 170-052 | 12-port Managed DIN Rail switch, 8x 10/100BASE TX / RJ45; 4x 100/1000Mbit/s fiber ; 8 x PoE(+) Ports |
|
BRS32-12TX |
942 170-097 |
12-port Managed DIN Rail PoE switch, 8x 10/100BASE TX / RJ45; 4x 10/100/1000BASE TX / RJ45; 8 x PoE(+) Ports |
|
BRS32-12TX-EEC |
942 170-098 |
12-port Managed DIN Rail PoE switch, 8x 10/100BASE TX / RJ45; 4x 10/100/1000BASE TX / RJ45; 8 x PoE(+) Ports |
BRS40
| Part Number | Article Number | Description |
|---|---|---|
| BRS40-8TX | 942 170-008 | 8x 10/100/1000BASE TX / RJ45 ports |
| BRS40-8TX-EEC | 942 170-018 | 8x 10/100/1000BASE TX / RJ45 ports |
| BRS40-8TX/4SFP | 942 170-009 | 12 Ports in total: 8x 10/100/1000BASE TX / RJ45, 4x SFP Slot (100/1000 Mbit/s) |
| BRS40-8TX/4SFP-EEC | 942 170-019 | 12 Ports in total: 8x 10/100/1000BASE TX / RJ45, 4x SFP Slot (100/1000 Mbit/s) |
|
BRS40-12TX |
942 170-077 |
12-port Managed DIN Rail switch, 12x 10/100/1000BASE TX / RJ45 ports |
|
BRS40-12TX-EEC |
942 170-078 |
12-port Managed DIN Rail switch, 12x 10/100/1000BASE TX / RJ45 ports |
| BRS40-16TX | 942 170-063 | 16-port Gigabit Managed Switch with 16 x Gig TX ports |
| BRS40-16TX-EEC | 942 170-064 | 16-port Gigabit Managed Switch with 16 x Gig TX ports |

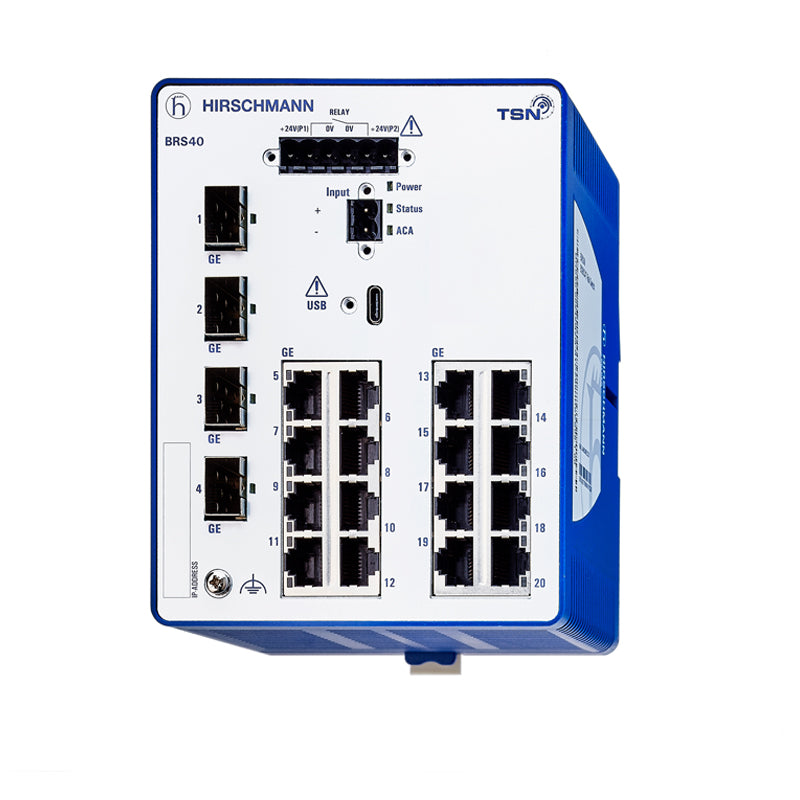

| BRS40-16TX/4SFP | 942 170-065 | 20-port Gigabit Managed 20 port Gigabit Switch with 16 GTX + 4FE/GE SFP ports |
| BRS40-16TX/4SFP-EEC | 942 170-066 | 20-port Gigabit Managed 20 port Gigabit Switch with 16 GTX + 4FE/GE SFP ports |
|
BRS40-20TX |
942 170-089 |
20-port Managed DIN Rail switch, 20x 10/100/1000BASE TX / RJ45 ports |
|
BRS40-20TX-EEC |
942 170-090 |
20-port Managed DIN Rail switch, 20x 10/100/1000BASE TX / RJ45 ports |
|
BRS40-20TX/4SFP |
942 170-067 | 24-port Gigabit Managed Switch with 20 GTX + 4FE/GE SFP ports |
| BRS40-20TX/4SFP-EEC | 942 170-068 | 24-port Gigabit Managed Switch with 20 GTX + 4FE/GE SFP ports |
|
BRS40-24TX |
942 170-091 |
24-port Managed DIN Rail switch, 24x 10/100/1000BASE TX / RJ45 ports |
|
BRS40-24TX-EEC |
942 170-092 |
24-port Managed DIN Rail switch, 24x 10/100/1000BASE TX / RJ45 ports |
| BRS42-8TX | 942 170-047 | 8-port Managed Gigabit PoE switch with 8 x GTX PoE+ ports |
| BRS42-8TX/4SFP | 942 170-046 | 12-port Managed Gigabit PoE switch with 8 x GTX PoE+ ports and 4 x FE/GE SFP ports |
| BRS42-8TX/4SFP-EEC | 942 170-050 | 12-port Managed DIN Rail switch with 8x 10/100/1000BASE TX / RJ45, 4x 100/1000Mbit/s fiber ; 8 x PoE(+) Ports |
|
BRS42-12TX |
942 170-099 |
12-port Managed DIN Rail PoE switch, 12x 10/100/1000BASE TX / RJ45 ; 8 x PoE(+) Ports |
|
BRS42-12TX-EEC |
942 170-100 |
12-port Managed DIN Rail PoE switch, 12x 10/100/1000BASE TX / RJ45 ; 8 x PoE(+) Ports |
BRS50
| Part Number | Article Number | Description |
|---|---|---|

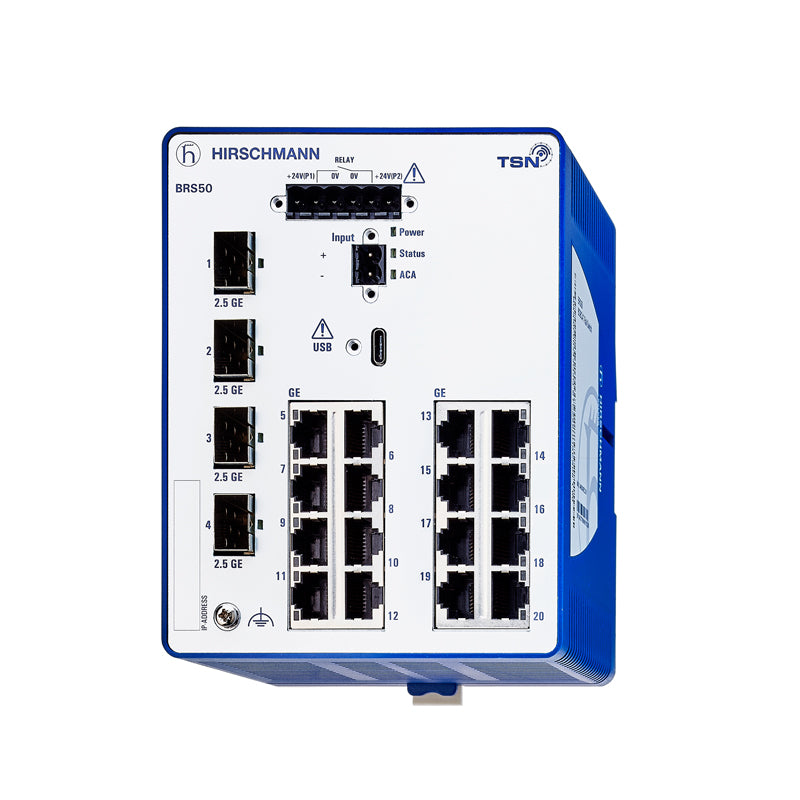

| BRS50-16TX/4SFP | 942 170-069 | 20 port Managed Gigabit Switch with 16 GTX + 4 FE/GE/2.5G SFP ports |
| BRS50-16TX/4SFP-EEC | 942 170-070 | 20 port Managed Gigabit Switch with 16 GTX + 4 FE/GE/2.5G SFP ports |
| BRS50-20TX/4SFP | 942 170-070 | 24-port Managed Gigabit Switch with 20 GTX + 4 FE/GE/2.5G SFP ports |
| BRS50-20TX/4SFP-EEC | 942 170-072 | 24-port Managed Gigabit Switch with 20 GTX + 4 FE/GE/2.5G SFP ports |
| BRS50-8TX/4SFP | 942 170-010 | 12 Ports in total: 8x 10/100/1000BASE TX / RJ45; 4x SFP Slot (100/1000/2500 Mbit/s) |
| BRS50-8TX/4SFP-EEC | 942 170-020 | 12 Ports in total: 8x 10/100/1000BASE TX / RJ45; 4x SFP Slot (100/1000/2500 Mbit/s) |
| BRS52-8TX/4SFP | 942 170-045 | 12-port Managed Gigabit PoE switch with 8 x GTX PoE+ ports + 4 FE/GE/2.5G SFP ports |
CONFIGURATOR
Click the following link to be redirected to Hirschmann's BOBCAT Configurator
Please contact us with your required configuration for pricing information
